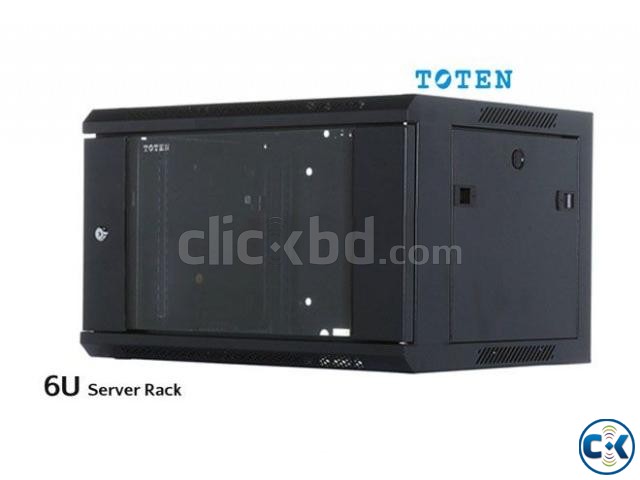

6U Server Rack Cabinet Enclosure

Brand : TOTEN

Model : W2.6406.9001

Contact for price : 01847213868
Product Description
Standard Features of Server Rack Cabinet TOTEN 6U :

600 x 450 x 368mm (Width x Dept. x Height )
2 x 4-inch Fan (Low Noise) on Vented Top Flush Panel
2 x Side Door with Cam Lock
Front Door –Glass with Cam Lock
4 x Panel Mount with Unit Indication
1 x Integrated Wall Mounting Panel
1 x Power Distribution Unit (6 Way PDU)
1 Packet of M6 Cage Nuts Assembly
Finish with Epoxy Powder Coating
Color : Black



Standards:

Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494;PART1, DIN41494;PART7, ETSI standard.



Server Rack Cabinet TOTEN 6U `s Features:

Welded frame, reliable structure;
Standing or wall mounting installation;
Adjustable feet and heavy duty castors are optional;
Easy mounting installation (patent);
19” standard installation;
Removable side panels, side locks optional;
Cable entry on both of top cover and bottom panel;
120mm fan available;
Turning angle of front door is over 180 degrees.



Main material:

SPCC cold rolled steel;
Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.



Surface finish:

Degreasing, pickling, phosphoric, powder coated;



Degree of protection:

IP20

Loading capacity:

Static loading: 60KG

Quality system:

TOTEN runs under ISO9001:2000 certification. They have passed the strict test, and gotten the certification of SGS for years.
Quality Control:

To ensure the quality and the manufacturing capacity our products, TOTEN has invested heavily to import advanced manufacturing equipment abroad: 5 Germany TRUMPF high-speed hydraulic turret punch presses, 1 Japan AMADA hydraulic turret punch presses, 2 Germany TRUMPF laser cutter, 33 press brakes, 4 spraying painting lines and 50 common punch presses.

Product Link : https://gctlnetworking.com/6u-server-rack-cabinet.html
