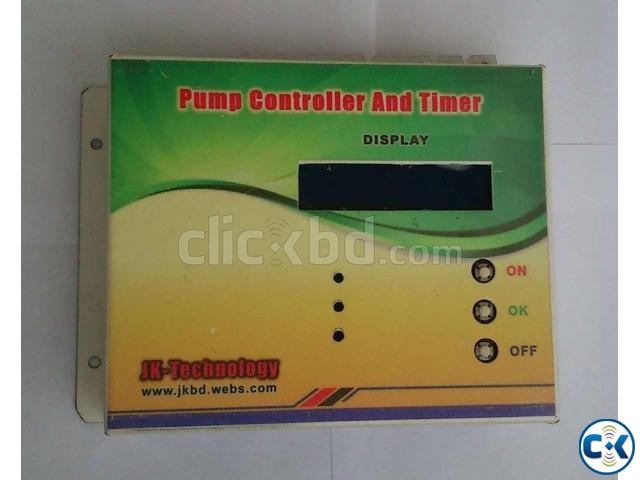

Simple Automatic Water Pump Controller

Description:
Automatic Water Pump controller will automatically START the-water-pump as soon as the water level falls below the predetermined level and it will SWITCH OFF the-water- pump as soon as the tank is full. Automatic Water Pump controller ensures no overflows or dry running of pump there by saves electricity and water. This device will indicate overhead_water_status, reservoir_status and Pump_status by its three LED (Red, green, Yalow).
Once you switch the pump ON, you do not have to wait till the tank fills up and starts to overflow. The pump will be switched OFF at full level. So you do not need to think anything about your overhead tank, reserved tank, Pump On/Off condition etc, Only use this modern device and be tension free.
Specification:
Technical Information:
1. Applicable for home/ office/ industry and more.
2. Single phase 220v AC. 1000w max load.
3. size :17cm X 12cm X 4cm, 250gram.
4. Internal voltage : 5vDC, 12vDV and 220vAC
5. Water sensor Voltage : 5v.
6. ON/OFF switch for manual control.
7. RGY 3*LED for status indication.
8. Internal 30A Relay, N/O, N/C.
9. control by atmega16 Micro- controller.
features and advantages:

10. Fully automatic and Easy installation.
11. Dual Tank monitoring (overhead + reservoir).
12. Increases pump set life.
13. Ensure no overflows or dry running.
14. Saves water, electricity and your time.
15. Very low installation cost.
16. Low price: per set 1200 tk.
17. performance 99%.
18. Strong metal body,
19. one year guarantee.
A product of jk technology From Bangladesh
