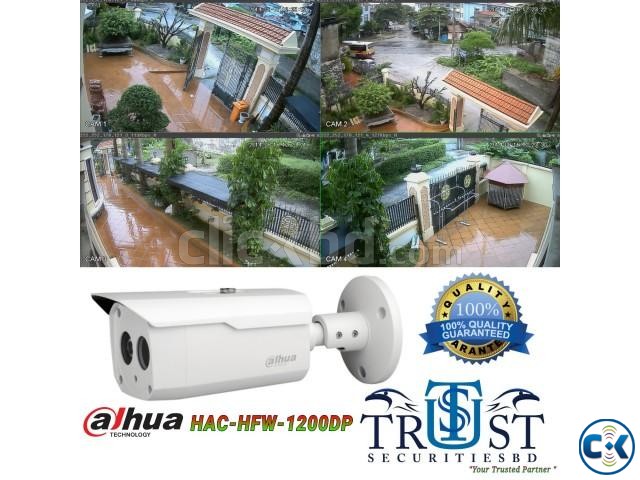

Dahua HAC-HFW-1200DP 2MP HDCVI Camera

Dahua HD Camera HAC-HFW-1200DP Features

Dahua HD Camera HAC-HFW-1200DP 2 MP IR Mini-Bullet HDCVI Camera
2MP HDCVI IR Bullet Camera
* The parameters and datasheets below can only be applied to 1200-S3 series
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens (6mm, 8mm optional)
> Max. IR length 80m, Smart IR
> IP67, DC12V
Dahua HD Camera HAC-HFW-1200DP Specifications
Camera HAC-HFW-1200DP
Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 80m (262feet)
IR On/Off Control Auto / Manual
IR LEDs 2
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (6mm, 8mm Optional)
Max Aperture F2.0
Angle of View H: 89.9°(59.4°/41.4°)
Focus Control N/A
Close Focus Distance 600mm (1800mm/3000mm)
23.62” (70.87”/118.11”)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 87°

Rotation: 0° ~ 360°
Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 6.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67
Construction
Casing Aluminium
Dimensions 241.8mm×90.4mm×90.4mm (9.52″×3.56″×3.56″)
Net Weight 0.64kg (1.41lb)
Gross Weight 0.77kg (1.70lb)
