Tripod Turnstile Sales and Installation

Tripod Turnstile Sales and Installation
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

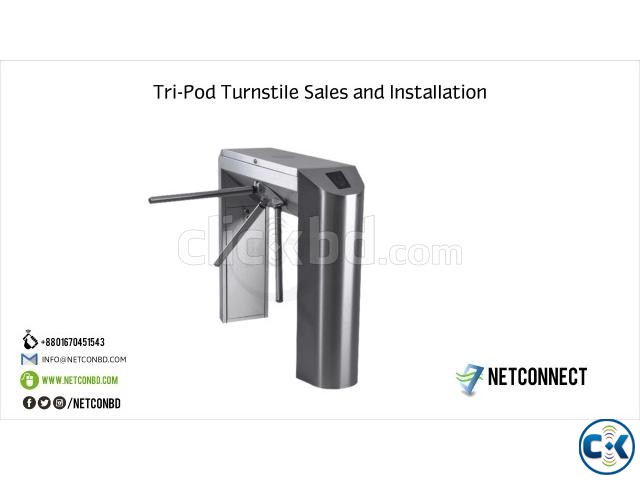

Waist-high Tripod Turnstile:
Functions & Features:
1) Stainless steel housing
2) Bi-direction pass
3) Arms auto drop when power off
4) Arms auto rise up when power on and auto stop on obstacle
5) Traffic light indicator
6) RFID interface
7) Photoelectric inspection
8) RS232 socket, LAN socket
9) If the passenger does not pass in valid time, the passage will be locked up again. The valid passing time can be set up by operator.
10) Passenger counter (optional)

Technical Data:
Voltage: 220V±10%, 110V±10%
Voltage: 50/60Hz
Control Circuit: DC12V
Consumption: 30W
Passing Speed: 35 Persons/min
Working Temperature: -20 ~55
Protection Gate: IP40
Communication Socket: RS232 standard socket/LAN socket
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Contact Us

Net Connect
Phone: 01670451543
