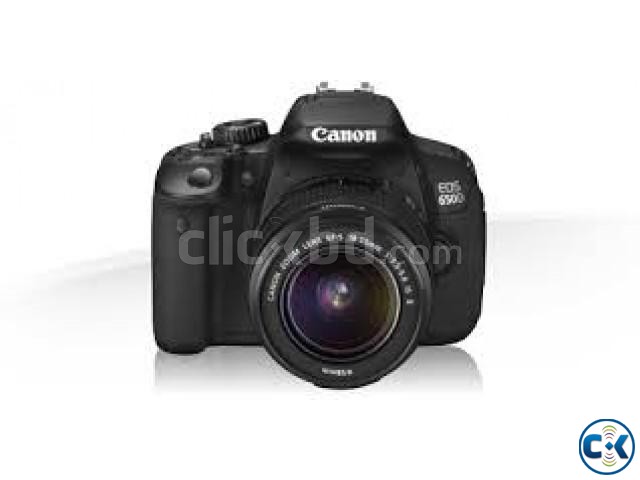

Canon EOS 650D

22.3 x 14.9mm CMOS
Effective Pixels Approx. 18.0 megapixels
Total Pixels Approx. 18.5 megapixels
Aspect Ratio 3:2
Low-Pass Filter Built-in/Fixed
Sensor Cleaning EOS integrated cleaning system
Colour Filter Type Primary Colour
IMAGE PROCESSOR
Back To Top
Type DIGIC 5
LENS
Back To Top
Lens Mount EF/EF-S
Focal Length Equivalent to 1.6x the focal length of the lens
FOCUSING
Back To Top
Type TTL secondary image forming, phase difference detection with AF dedicated CMOS sensor
AF System/ Points 9 cross-type AF points (f/2.8 at centre)
AF Working Range EV -0.5 -18 (at 23°C & ISO100)
AF Modes AI Focus
One Shot
AI Servo
AF Point Selection Automatic selection, Manual selection
Selected AF Point Display Superimposed in viewfinder and indicated on LCD monitor
Predictive AF Yes, up to 10m¹
AF Lock Locked when shutter button is pressed half way
AF Assist Beam Intermittent firing of built-in flash or emitted by optional dedicated Speedlite
Manual Focus Selected on lens
EXPOSURE CONTROL
Back To Top
Metering Modes TTL full aperture metering with 63-zone SPC
(1) Evaluative metering (linked to all AF points)
(2) Partial metering at center (approx. 9% of viewfinder)
(3) Spot metering (approx. 4% of viewfinder at center)
(4) Center weighted average metering
Metering Range EV 1-20 (at 23°C with 50mm f/1.4 lens ISO100)
AE Lock Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE lock button in creative zone modes.
Exposure Compensation '+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
AEB '3 shots +/- 2 EV, 1/2 or 1/3-stop increments
ISO Sensitivity* AUTO(100-6400), 100-12800 in 1-stop increments
ISO can be expandable to H: 25600)
SHUTTER
Back To Top
Type Electronically-controlled focal-plane shutter
Speed 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
WHITE BALANCE
Back To Top
Type Auto white balance with the imaging sensor
Settings AWB, Daylight, Shade, Cloudy, Tungsten, White
Fluorescent light, Flash, Custom.
White balance compensation:
1. Blue/Amber +/-9
2. Magenta/ Green +/-9.
Custom White Balance Yes, 1 setting can be registered
WB Bracketing '+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/ Green bias.
VIEWFINDER
Back To Top
Type Pentamirror
Coverage (Vertical/Horizontal) Approx. 95%
Magnification Approx. 0.85x ¹
Eyepoint Approx. 19mm (from eyepiece lens centre)
Dioptre Correction '-3 to +1 m-1 (dioptre)
Focusing Screen Fixed
Mirror Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter)
Viewfinder Information AF information: AF points, focus confirmation light
Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB
Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light
Image information: Highlight tone priority (D+), monochrome shooting, maximum burst (1 digit display), White balance correction, SD card information
Depth of Field Preview Yes, with Depth of Field preview button.
Eyepiece Shutter On strap
LCD MONITOR
Back To Top
Type Touch screen vari angle 7.7cm (3.0") 3:2 Clear View II TFT, approx. 1040K dots
Coverage Approx. 100%
Viewing Angle (Horizontally/Vertically) Approx 170°
Coating Anti smudge
Brightness Adjustment Adjustable to one of seven levels
Display Options (1) Quick Control Screen
(2) Camera settings
FLASH
Back To Top
Built-in Flash GN (ISO 100, meters) 13
Built-in Flash Coverage up to 17mm focal length (35mm equivalent: 28mm)
Built-in Flash Recycle Time Approx. 3 seconds
Modes Auto, Manual flash, Integrated Speedlite Transmitter
Red-Eye Reduction Yes - with red eye reduction lamp
X-Sync 1/200sec
Flash Exposure Compensation '+/- 2EV in 1/2 or 1/3 increments
Flash Exposure Bracketing Yes, with compatible External Flash
Flash Exposure Lock Yes
Second Curtain Synchronisation Yes
HotShoe/ PC Terminal Yes/ No
External Flash Compatibility E-TTL II with EX series Speedlites, wireless multi-flash support
External Flash Control via camera menu screen
SHOOTING
Back To Top
Modes Scene Intelligent Auto, No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, Handheld Night Scene, HDR Backlight Control, Program AE , Shutter priority AE, Aperture priority AE, Manual
Picture Styles Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined (x3)
Colour Space sRGB and Adobe RGB
Image Processing Highlight Tone Priority
Auto Lighting Optimizer (4 settings)
Long exposure noise reduction
High ISO speed noise reduction (4 settings)
Multi Shot Noise Reduction
Auto Correction of Lens Peripheral illumination
Basic+ (Shoot by ambience selection, Shoot by lighting or scene type)
Creative filters (Art Bold, Water painting, Grainy B/W, Soft focus, Toy camera, Miniature effect, Fish-eye) - during image Playback only
Drive Modes Single, Continuous, Self timer (2s, 10s+remote, 10s + continuous shots 2-10)
Continuous Shooting Max. Approx. 5fps for approx. 22 JPEG images¹, 6 images RAW² ³
LIVE VIEW MODE
Back To Top
Type Electronic viewfinder with image sensor
Coverage Approx. 99% (horizontally and vertically)
Frame Rate 30 fps
Focusing Manual Focus (Magnify the image 5x or 10x at any point on screen)
Autofocus: Hybrid CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Phase detection AF (Quick mode)
Metering Real-time evaluative metering with image sensor.
Evaluative metering, partial metering, spot metering, center-weighted average metering.
Display Options Grid overlay, Histogram
FILE TYPE
Back To Top
Still Image Type JPEG: Fine, Normal (Exif 2.30 compliant) / Design rule for Camera File system (2.0),
RAW: RAW (14bit, Canon original RAW 2nd edition),
Digital Print Order Format [DPOF] Version 1.1 compliant
RAW+JPEG Simultaneous Recording Yes, RAW + Large JPEG
Image Size JPEG: (L) 5184x3456, (M) 3456x2304, (S1) 2592x1728, (S2) 1920x1280, (S3) 720x480
RAW: (RAW) 5184x3456
Movie Type MOV (Video: H.264, Sound: Linear PCM, recording level can be manually adjusted by user)
Movie Size 1920 x 1080 (29.97, 25, 23.976 fps)
1280 x 720 (59.94, 50 fps)
640 x 480 (30, 25 fps)
Movie Length Max duration 29min 59sec, Max file size 4GB
Folders New folders can be manually created and selected
File Numbering (1) Consecutive numbering
(2) Auto reset
(3) Manual reset
OTHER FEATURES
Back To Top
Custom Functions 8 Custom Functions with 34 settings
Metadata Tag User copyright information (can be set in camera)
Image rating (0-5 stars)
Intelligent Orientation Sensor No
Playback Zoom 1.5x - 10x enabled in 15steps
Display Formats (1) Single image with information (2 levels)
(2) Single image
(3) 4 image index
(4) 9 image index
(5) Jump Display
Slide Show Image selection: All images, by Date, by Folder, Movies, Stills
Playback time: 1/2/3/5 seconds
Repeat: On/Off
Histogram Brightness: Yes
RGB: Yes
Highlight Alert Yes
Image Erase/Protection Erase: Single image, All images in folder, Checkmarked images, unprotected images
Protection: Erase protection of one image at a time
Menu Categories (1) Shooting menu (x5)
(2) Playback menu (x2)
(3) Setup menu (x3)
(4) Custom Functions menu
(5) My Menu
Menu Languages 25 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese
Firmware Update Update possible by the user.
INTERFACE
Back To Top
Computer Hi-Speed USB
Other Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack)
DIRECT PRINT
Back To Top
Canon Printers Canon Compact Photo Printers and PIXMA Printers supporting PictBridge
PictBridge Yes
STORAGE
Back To Top
Type SD, SDHC or SDXC (UHS-I)card
SUPPORTED OPERATING SYSTEM
Back To Top
PC & Macintosh Windows XP inc SP3 / Vista inc SP1 and SP2 (excl. Starter Edition) / 7 (excl. Starter Edition)
OS X v10.6-10.7 (Intel processor required)
SOFTWARE
Back To Top
Browsing & Printing ImageBrowser EX
Image Processing Digital Photo Professional
Other PhotoStitch, EOS Utility (inc. Remote Capture), Picture Style Editor
POWER SOURCE
Back To Top
Batteries 1 x Rechargeable Li-ion Battery LP-E8
Battery Life Approx. 440 (at 23°C, AE 50%, FE 50%)¹
Approx. 400 (at 0°C, AE 50%, FE 50%)
Battery Indicator 4 levels
Power Saving Power turns off after 30sec or 1, 2, 4, 8 or 15mins.
Power Supply & Battery Chargers AC Adapter Kit ACK-E8, Battery charger LC-E8, LC-E8E
PHYSICAL SPECIFICATIONS
Back To Top
Body Materials Stainless Steel and polycarbonate resin with glass fiber
Operating Environment 0 – 40 °C, 85% or less humidity
Dimensions (WxHxD) 133.1 x 99.8 x 78.8 mm
Weight (Body Only) Approx. 575g (CIPA testing standard, including battery and memory card)
ACCESSORIES
Back To Top
Viewfinder Eyecup Ef, E-series Dioptric Adjustment Lens with Rubber Frame Ef, Eyepiece Extender EP-EX15II, Angle Finder C
Case Semi-Hard Case EH22-L
Wireless File Transmitter Compatible with Eye-Fi cards
Lenses All EF and EF-S lenses
Flash Canon Speedlites (220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT)
Battery Grip BG-E8
Remote Controller/ Switch Remote Switch RS-60E3, Remote Controller RC-6
Other Hand Strap E2
Predictive AF ¹ With EF300mm f/2.8L IS USM at 50kph
Magnification ¹ With 50mm lens at infinity, -1m-1 dpt
Continuous Shooting ¹ Large/Fine(Quality 8) resolution
² Based on Canon's testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc.
³ Maximum fps and buffer capacity may be reduced depending on the cameras settings and light level
Battery Life ¹ Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated

*Recommended Exposure Index
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
