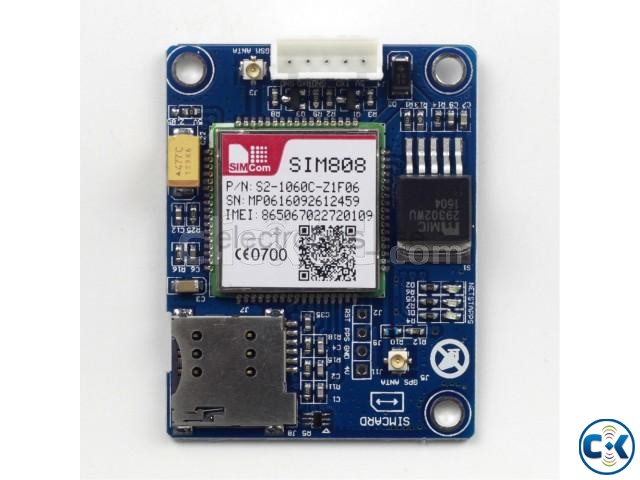

SIM808 Development Board GPS Bluetooth SMS Module

Features:

Voltage Range:5-18V
Lithium Battery Interface Voltage:3.4-4.4V
Operating Temperature:-40to+85℃
Storage Temperature：-45to+90℃
Size:50*50mm
GSM/GPRS Characteristic:
Bands: GSM 850,EGSM900,DCS 1800,PCS 1900



Transmit Power:
Class 4(2W)at GSM 850 and EGSM 900
Class 1(1W)at DCS 1800 and PCS 1900
GPRS Transmission Rate:
GPRS Downlink Data Transmission：max.85.6kbps
GPRS Uplink Data Transmission: max.85.6kbps
SIM Card Interface:
Support SIM card:1.8V,3V
Support 2G/3G/4G Mobile Unicom card
Serial Port:Support baud rate auto recognization
Rate:1200-115200bps



GPS Characteristic:
Horizontal Accuracy:<2.5m
Speed Accuracy(DGPS):0.05m/s
Acceleration Accuracy(DGPS):0.05m/s²
Timing Accuracy：10ns
Power Consumption:Acquisition:42mA (3.8V at -130dBm,GSM IDLE)
Bluetooth Characteristic:
Integrated AT Command Control
Fully Compliant with Bluetooth specification 3.0+EDR
Fully Integrated PA provide 10dbm output power
Max. support 4 way ACL link

Download:

http://www.uctronics.com/download/U4918.zip

Package Including:

1pcs SIM808 Development Board GSM GPRS GPS Bluetooth SMS Module

===========================
