Time Attendance and Access Control

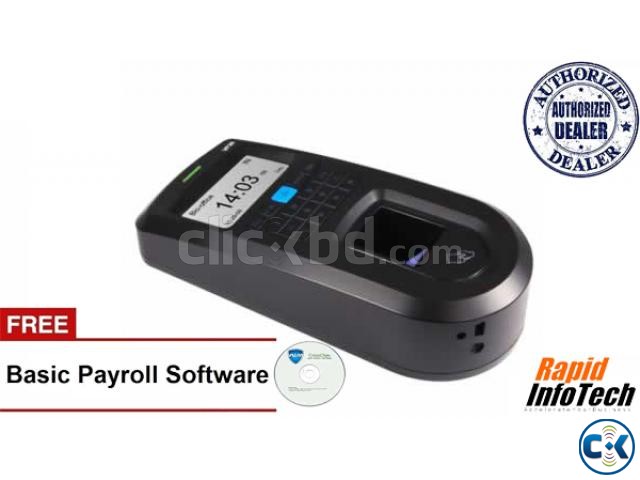

Anviz VF30 Time Attendance Access Control

• Anviz technology with optical waterproof fingerprint sensor. Scratch-proof, unbreakable and durable.
• Well accept all kinds of fingerprints
• BioNano core algorithm platform of high performance and reliability
• New version algorithm with improved performance on wet and dry fingerprints.
• Support identification from different angles
• Support multiple languages display. Suitable for local market.
• White backlit keypad with 10 numeric keys and 7 function keys
• Optional RFID/ Mifare card reader
• RS485, Mini USB Slave and TCP/IP for network connection
• Direct lock control to open door, door open sensor.
• Optional SC011/SC844 or any other standard access controller for separate type secure access control system
• Unique infrared auto wakeup design
• Time zone and group access control, realtime data transfer monitor
• Standard 2000 fingerprints and 50000 records
• Wall mounted, combine 2-in-1 function for access control and time attendance
Scan Area: 22mm*18mm
Resolution: 500 DPI
LCD: 128*64 white LCD
Capacity: Max 2,000
Template: Max 2,000
Log Capacity: Max 50,000
Identification Mode: FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Identification Time: <0.5 Sec
FRR: 0.001%
FAR: 0.00001%
Communication Interface: RS485,Mini USB Slave, TCP/IP, Wiegand Out
Card Reader Module: Optional 125KHZ EM RFID, 13.56MHZ Mifare
Fingerprint Image Display: Yes
Self-defined Status: 8
Workcode: Yes
Short Message: 50
Scheduled Bell: 30
Relay: DC 12V, Relay Output(COM, NO, NC)
Access Groups & Time Schedules 15 Groups, 32 Time Zones
Door Sensor: Yes
Tamper Alarm: Yes
Operating Voltage: DC 12V
Size: 80(w)*180(h)*40(d)mm
Temperature: -10?~40?
IP Level: IP53(Optional Waterproof Cover)
Certificates: FCC, CE
Applicable Situation: Up to 1000 Users
WARRANTY: ONE YEAR
========================================
Free Service: One Year
=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=
