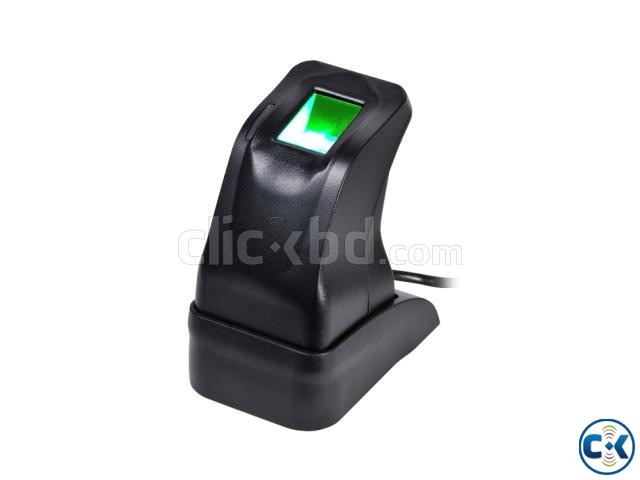

ZKTeco ZK4500 Fingerprint Reader

Quick Details
ID No: HM21617-1292
Price: 4600 BDT
Brand: ZK
Model: ZK4500
Origin: Made in China
Product Title: ZKTeco ZK4500 ,Fingerprint Reader

Model Name ZK4500
Material Optical
CPU 120MHz DSP
Flash 16 KB
SoC RTOS
Image Quality 0.3 million pixels CMOS
Encrypted Fingerprint Data NA
Sunlight Operation White filed, General Sunlight
Water Splash YES
Dry, Wet, or Rough Fingerprints General Level
Power Consumption 5V:200mA Scanning; 5V:90mA idle (waiting for finger)
Live Fingerprint Detection NO
LED Green
Product Certifications FCC, CE
Power Voltage 5V (USB)
Power Current 200mA
Communication USB 2.0 / USB1.1 / USB1.0
Interface Socket USB Type A
Image Resolution 500 dpi
Effective Collecting Area 13.24 * 15.7 mm
Collecting Area 15.4*18 mm
Image Size 280*360 pixel
Dimension 65.5 * 48 * 79.8mm (L*W*H)
Image Format BMP
Template ZKFinger V10.0
Template Size <2KB, (ZKFinger V10.0);1568 B (ISO 19794-2)
Gray Level 256
Weight 0.25kg
Operating Environment -20 °C ~ +50 °C; 90% r.h.
Overview
ZK4500 is a stable and excellent fingerprint scanner. The device can capture fingerprint image and upload to the PC by USB interface. It supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS. We provide developer with SDK. The developer can integrate the hardware into their own system. This product is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.

Function
• High-performance, maintenance-free optical fingerprint sensor.
• Readily accessible for any finger
• High quality industrial-class ABS plastic material with scratchproof texture surface treatment
• Removable weighted stand
• High speed USB interface
• LED indicates the status of the device
• Driver CD included
• Available SDK for secondary development
