Metal detector gate

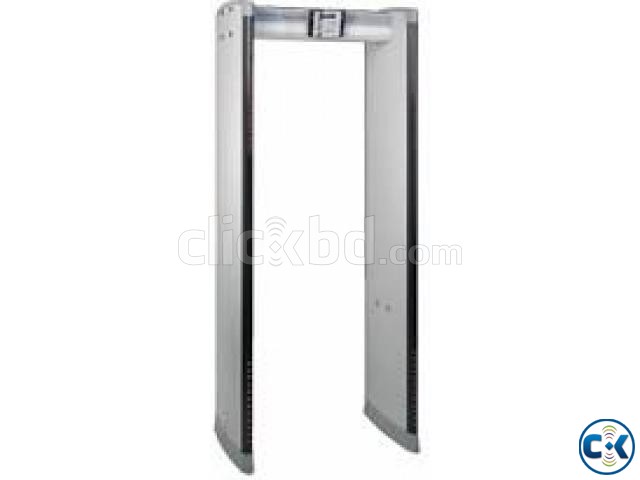

Archway Gate Metal Detector
Quick Details
Brand Name: MCD
Model Number: MCD-600
Archway: six zone


Device Specifications:
With LEDs on the both sides of this walk through metal detector; frame alloy aluminum covered,
With six separate detection zones to check the metal's accurate position.
Every detection zone with % grade sensitivity, could according to users' requirement to adjust.
Digital circuit design, strong ability for prevent interference, prevent to false alarm, mistaking alarm rate is within 1%.
With password prevention function, person whom could operate with authorization.
Statistic the passenger numbers and alarm times.
Adopting sense head metal detection technology, it's harmless to heart pace maker, pregnant
women, magnetic disc, tape, recording tape and etc

Technical parameters:
detection procedures: 100 sensitivity adjustment may be required on different occasions to meet separately.
through rate: more than 60 persons / per minute.
Power: 220V AC, 50/60Hz.
Power: 35VA.
working environment: -10 degree-+45 degree
Overall dimension: 2230 mm (high)*820 mm (width)*630 mm (deep).
Channel Size: 2000 mm (high)*700 mm (width)*560 mm (deep).
machine weight: about 80kg
