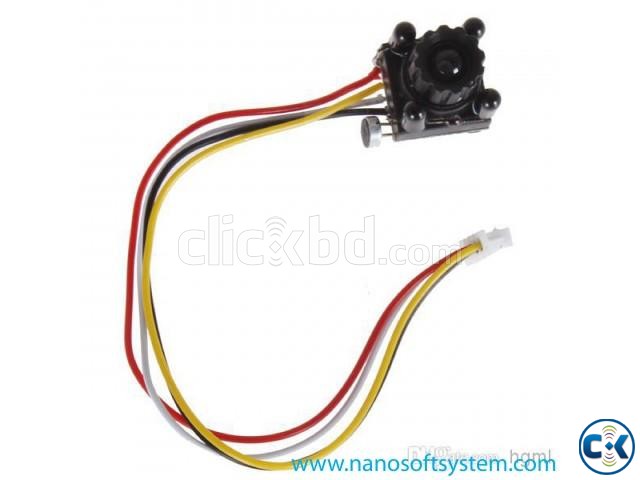

Model : NS702 Product Descreption Using four generation CMOS sensor + DSP digital chip synthesis technology, ultra-low-light (0.008LUX) and 520 line high definition picture quality and tiny size design. Applicable to industrial equipment, pipes, vehicle maintenance and miniature field of security. Technical Specification Resolution 600TVL (1280 x 960) Night Vision Distance 5m Camera Lens 6mm Pick up element Single chip1/3 Cmos Number of pixel NTSC, 656 (H) *492 (V) Image signal Process Digital signal processing System Sensor Dimension 4.75mm (H) *3.55mm (V) Sensitivity 0.008Lux.F1.2 Lens & View Angle 0.5mm F2.o /55° S/N Ration 52db Electronic shutter Out (1/60 S to 1/100000 S) Auto gain Control Out White Balance control Out Video Out 1.0V p-p/75ohm Size (L*W*H) 9.5mm * 9.5mm *12mm Weight 1G Work Current 70ma Power Requirement DC 3.3V-6V Operating Temperature -10°C ~ +50°C, less than 90% RH Connection Pin-Red DC5V Pin2- Black GND Pin3- Yellow Video our WHY “Nanosoft System" --------------------------------- More than 1000+ Existing Clients... 24x7 Support Team... Granted After Sales Service... 100% Qualified Product Guarantee…. We Offer Product & Service Any Where in Bangladesh… ANY PRODUCT & SERVICE HOME DELIVERY FACILITY All Kinds of IT Products are Available Here WARRANTY: ONE YEAR -------------------------------------------------- Free Service: One Year +-+-+-+-+-+-+-+-+-+-+-+-+-+-+ Contact Information : Corporate Office : Nanosoft System 95, MOTIJHEEL C/A, (6th FLOOR), DHAKA-1000, BANGLADESH Office Time: 9:00 am-7:00 pm MOBILE: +88 01711669596, +88 01718365341 ☎ Phone: +88-02-9584115, +88-02-9584116, Fax: +88-02-9584117 Email: [email protected] ⓦ http://www.nanosoftsystem.com Welcome to Nanosoft System, Nanosoft System is an Information Technology based company. We are supporting all kind of smart security electronic device and software Solution. For more information about our company, please visit our Company Website |
