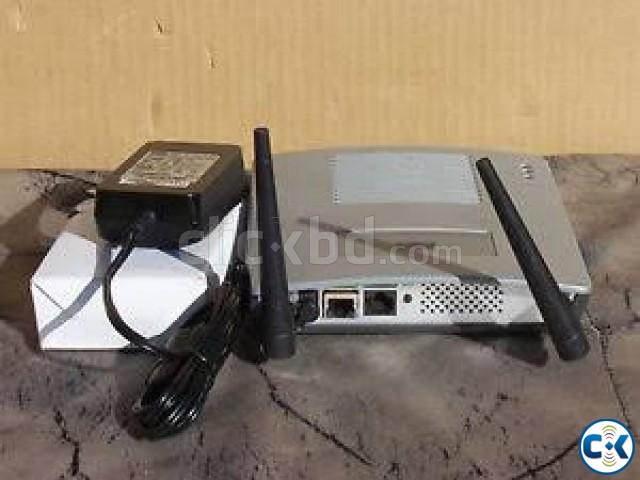

Cisco 1231G AP Router

Cisco Aironet 1200 Series - 1231 Access Point (802.11g LWAPP AP Dual RP-TNC: A CBUS Slot FCC Config)

The Cisco Aironet 1200 Series Access Point is a single band lightweight or autonomous access point with dual diversity antenna connectors for challenging RF environments. It offers the same versatility, high capacity, security, and enterprise-class features demanded by industrial wireless LAN customers in a single-band 802.11g solution. The Aironet 1200 Series modular device provides the flexibility to field upgrade to a dual-band 802.11a/g network by adding a CardBus-based 802.11a upgrade module that can be easily installed into Cisco Aironet 1200 Series access points originally configured for 802.11g. The device is available in either a lightweight version, or as an autonomous version that may be field-upgraded to lightweight operation.
Technical Information

Wireless Technology: IEEE 802.11b/g
Frequency Band/Bandwidth: 2.4GHz FCC
Frequency Band/Bandwidth Details: 2.412 to 2.462GHz IEEE 802.11b/g FCC
Antenna: with RP-TNC
Antenna Range:
490ft @ 11Mbps Outdoors IEEE 802.11b
700ft @ 1 Mbps Outdoors IEEE 802.11b
220ft @ 11Mbps Indoor IEEE 802.11b
410ft @ 1 Mbps Indoor IEEE 802.11b
110ft @ 54 Mbps Outdoors IEEE 802.11g
650ft @ 6 Mbps Outdoors IEEE 802.11g
90ft @ 54 Mbps Indoor IEEE 802.11g
300ft @ 1 Mbps Indoor IEEE 802.11g
Transmission Speed:
11Mbps Auto-fallback IEEE 802.11b
1Mbps IEEE 802.11b
54Mbps Auto-fallback IEEE 802.11g
6Mbps IEEE 802.11g
Channels:
11 Channel(s)Operating Americas
3 Channel(s)Nonoverlapping IEEE 802.11b/g
Transmit Power:
-1dBm to 17dBm IEEE 802.11a
0dBm to 17dBm IEEE 802.11b
Receiver Sensitivity:
-72 dBm Typical @ 54Mbps IEEE 802.11a
-87 dBm Typical @ 6Mbps IEEE 802.11a
-85 dBm Typical @ 11Mbps IEEE 802.11b
-94 dBm Typical @ 1Mbps IEEE 802.11b
Wireless Security: WPA WPA2 (802.11i) Cisco TKIP Cisco message integrity check (MIC) IEEE 802.11 WEP IEEE 802.1X EAP
Modulation: DSSS OFDM
Output Power: 13W
General Information

Manufacturer: Cisco Systems
Product Line: Aironet
Product Name: Aironet 1200 Series Access Point
Physical Characteristics

Dimensions: 1.6" (41mm) x 6.5" (165mm) x x 7.2" (183mm) - Add 0.517 in. (1.31 cm) height for mounting bracket
Weight: 1.72 lb (0.78 kg) - Add 0.4 lb (0.181 kg) for mounting bracket
Environmental Conditions

Temperature:
-40°C (-40°F) to 85°C (185°F) Non-operating
-20°C (-4°F) to 50°C (122°F) Operating
Humidity: 10 to 90% Non-condensing
Agency Approvals
