Standards | - IEEE 802.3
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.3az
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (2.4 GHz up to 300 Mbps)
|

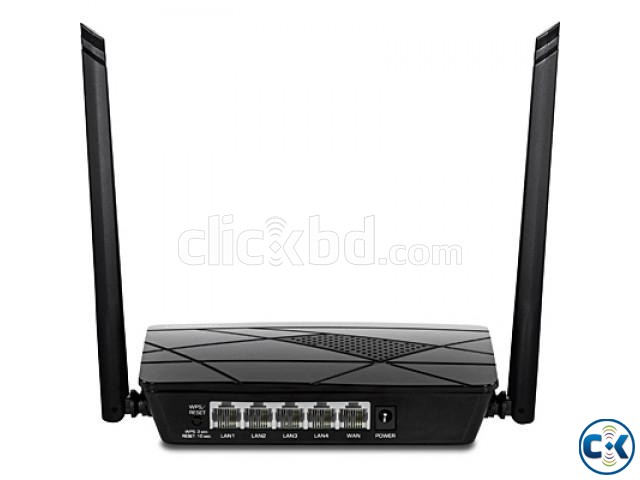

Hardware Interface | - 4 x 10/100 Mbps LAN ports
- 1 x 10/100 Mbps WAN port
- WPS / Reset button
- LED indicators
|
Special Features | - Internet Bandwidth Control
- IPv6 Support
- 5 dBi Antennas
- Multi-Language interface: English, Spanish, Portuguese
- Pre-encrypted wireless network
|
Access Control | - Wireless encryption: WEP, WPA / WPA2-PSK
- Firewall: NAT, SPI, Virtual Server, Port Triggering, DMZ Host, PPTP / L2TP / IPsec VPN Passthrough, allow / deny ping request from Internet
- Access Control: URL / Keyword Filter, IP Filter, Wireless MAC Filter
|
Quality of Service | - WMM
- Internet Bandwidth Control
- Dynamic IP (DHCP)
- Static IP (Fixed)
- PPPoE (Dynamic IP / Static IP)
- IPv6 (Static, Auto-configuration (SLAAC / DHCPv6), Link-Local, PPPoE)
|
Management | - Local / remote web based management
- Upgrade firmware
- Backup / restore configuration
- Reboot
- Restore to factory defaults
- Wireless Repeater Mode
|
Frequency | |
Modulation | - 802.11b: CCK (11 Mbps & 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
- 802.11g: OFDM with BPSK, QPSK and 16/64-QAM
- 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
|
Media Access Protocol | |
Antenna Gain | - 2 x 5 dBi external adjustable
|
Wireless Output Power | - 802.11b: FCC: 14 dBm (max.), ETSI: 17 dBm (max.) @ 11 Mbps
- 802.11g: FCC: 15 dBm (max.), ETSI: 17 dBm (max.) @ 54 Mbps
- 802.11n: FCC: 17 dBm (max.), ETSI: 14 dBm (max.) @ 300 Mbps
|
Receiving Sensitivity | - 802.11b: -80 dBm (typical) @ 11 Mbps
- 802.11g: -72 dBm (typical) @ 54 Mbps
- 802.11n: -72 dBm (typical) @ 300 Mbps
|
Wireless Channels | |
Power | - Input: 100 – 240 V AC, 50 - 60 Hz
- Output: 5 V DC, 1 A external power adapter
- Consumption: 3.2 Watts (max.)
|
Operating Temperature | |
Operating Humidity | |
Certifications | |
Dimensions | - 160 x 102 x 30 mm (6.2 x 4.3 x 1.3 in.)
- Antenna length: 195 mm (7.7 in.)
|
Weight | |
Warranty | |
