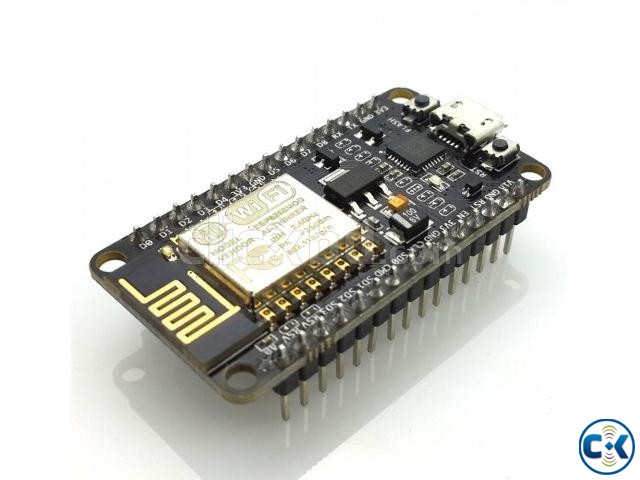

The NodeMCU is an open-source firmware and development kit that helps you to prototype your IoT product within a few Lua script lines. Build on ESP8266 sdk Build on CP2102 USB to TTL Lua core based on eLua project cjson based on lua-cjson File system based on spiffs Easy to access wireless router Based on Lua 5.1.4 (without debug, os module.) Event-Drive programming preferred. Build-in json, file, timer, pwm, i2c, spi, 1-wire, net, mqtt, coap, gpio, wifi, adc, uart and system api. GPIO pin re-mapped, use the index to access gpio, i2c, pwm. Both Integer version(less memory usage) and Float version(Default) firmware provided. Features: Now supports the arduino IDE 1 with Arduino ESP8266 Uses WiFi Module – ESP-12E. USB – Power 5v and program via micro USB port CP2102 USB TTL Module Fits on a standard breadboard and gives access to a row of holes either side 10 GPIO, every GPIO can be PWM, I2C or 1-wire Headers – 2 x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins. Misc – Reset and Flash buttons Dimensions – 49 x 24.5 x 13mm USB-TTL included, plug n play FCC CERTIFIED WI-FI module, PCB antenna If you need more units I can provide it for you. This is great for DIY projects. Goods once sold cannot be refunded. |
