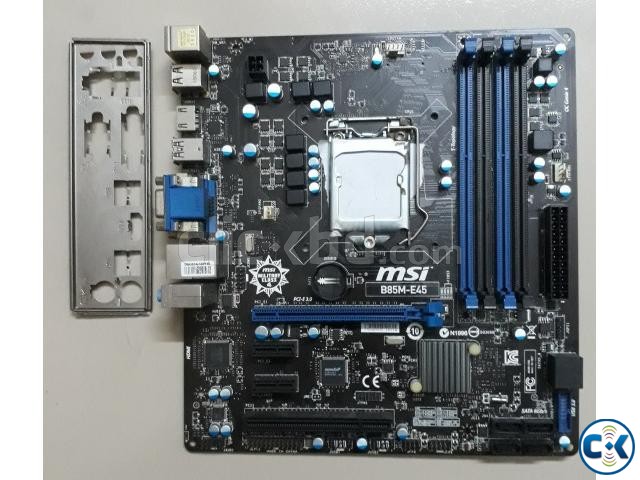

Core i3/i5/i7 Motherboard MSI B85M-E45

Core i3/i5/i7 Motherboard MSI B85M-E45
Price-3000Tk (Market Price-6800Tk)

Mobile:01638892524

Used Only 15th Months (Still 21 months warranty left but warranty paper lost)



ভাইয়েরা রোজা রমযানের দিন তাই গ্যাজানোর কোন ইচ্ছা নাই দামে পোষালে ফোন দিয়েন। জিনিস সম্পূর্ণ একশো তে একশো। টাকার ঠেকা তাই বিক্রি করতে হচ্ছে। দয়া করে অযথা দামাদামি করার জন্য ফোন দিবেন না। ধন্যবাদ।
Motherboard Details:
• Supports 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset
• Intel® B85 Express Chipset

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600 DRAM up to 32GB Max
• Supports Dual channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots
• 1 x PCI slot
On-Board SATA
• SATAIII controller integrated in Intel® B85 chipset
- Up to 6Gb/s transfer speed.
- Supports four SATAIII port (SATA1~4) by B85
• SATAII controller integrated in Intel® B85 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA5~6) by B85
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology*
* Supports Intel Core processors on Windows 7 and Windows 8.

USB
• 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
• 8 x USB 2.0 ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

Audio
• Chipset integrated by Realtek® ALC887
- 7.1-Channel High Definition Audio

LAN
• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111G
Internal I/O Connectors
- 1 x ATX 24-Pin power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x 3-pin system fan connector
- 4 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 1 x Clear CMOS jumper
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connectors (supports additional 2 USB 3.0 ports)
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Chassis Intrusion connector
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x HDMI port, supporting the maximum resolution of 4096x2160@24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/ 1920x1080@60Hz, 36bpp
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
- 1 x Graphics port, supporting a maximum resolution of 1920x1200 @60Hz
This platform supports dual-display and triple-display function
HDMI+VGA
VGA+DVI-D
DVI-D+HDMI
HDMI+VGA+DVI-D
BIOS
• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension
• 9.0 in. x 9.6 in. (22.8 cm x 24.4 cm) Micro-ATX Form Factor
Mounting
• 6 mounting holes.
