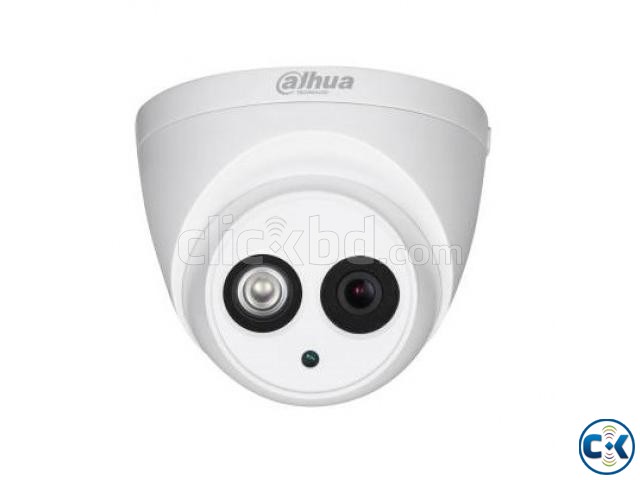

Dahua HAC-HDW1200EM-A 2MP HDCVI IR Dome Camera

> Max 30fps @ 1080P
> HD and SD output switchable
> 3.6mm fixed lens (6mm optional)
> Max. IR length 50m, Smart IR
> IP67, DC12V
Dahua HAC-HDW1200EM-A Bangladesh
Camera
Image Sensor 1 / 2.7 “CMOS
Effective Pixels 1920 (H) × 1080 (V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 ~ 1 / 100000s

NTSC: 1/30 ~ 1 / 100000s
Minimum Illumination 0.02Lux / F1.85, 30IRE, 0Lux IR on
S / N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On / Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.85
Angle of View H: 89.9 ° (103 °, 54.7 °)
Focus Control N / A
Close Focus Distance 600mm (900mm, 2000mm)

23.62 ” (35.43 “, 78.74 ”)
DORI

Definition
Distance
Detect 25px / m

(8px / ft)
2.8mm: 42m (139ft)

3.6mm: 53m (175ft)

6mm: 78m (257ft)
I watched 63px / m

(19px / ft)
2.8mm: 17m (55ft)

3.6mm: 21m (70ft)

6mm: 31m (103ft)
Recognize 125px / m

(38px / ft)
2.8mm: 9m (28ft)

3.6mm: 11m (35ft)

6mm: 16m (51ft)
Identify 250ppm

(76px / ft)
2.8mm: 4m (14ft)

3.6mm: 5m (17ft)

6mm: 8m (26ft)
Pan / Tilt / Rotation
Pan / Tilt / Rotation Bread: 0 ° ~ 360 °

Tilt: 0 ° ~ 78 °

Rotation: 0 ° ~ 360 °
Video
Resolution 1080P (1920 × 1080)
Frame Rate 25 / 30fps @ 1080P, 25/30/50 / 60fps @ 720P
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch)
Day / Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)

UL (UL60950-1 + CAN / CSA C22.2 No.60950-1)
Interface
Audio Interface Built-in Mic
Eelectrical
Power Supply 12V DC ± 25%
Power Consumption Max 3.2W (12V DC, IR on)
Environmental
Operating Conditions -40 ° C ~ + 60 ° C (-40 ° F ~ + 140 ° F) / Less than 90% RH

* Start up should be done at above -40 ° C (-40 ° F)
Storage Conditions -40 ° C ~ + 60 ° C (-40 ° F ~ + 140 ° F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Aluminum
Dimensions Φ106mm × 93.7mm (Φ4.17 “× 3.69”)
Net Weight 0.44kg (0.97lb)
Gross Weight 0.58kg (1.28lb)
