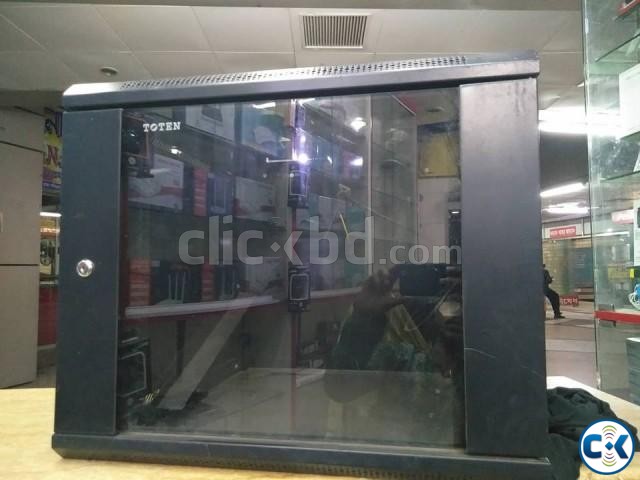

TOTEN 9U HEAVY DUTY WALL MOUNT CABINET-GLASS DOOR

Feature:
- Double section welded frame structure
- Easy operation and maintaining at the back
- 19" standard installation
- Removable side panels, side locks are included, easy installing and maintaining
- Cable entry at the top cover and bottom panel
- 120mm fan optional
- Turning angle of front door is above 180 degree
- Turning angle of rear door is above 90 degree

- Maximun usable depth 450mm

Standard:
- Complies with ANS/EIA RS-310-D, IEC297-2, DIN41497 PART1, DIN41494 part 7, GB/T3047.2-92 standard

Material:
- SPCC cold rolled steel
- Thickness: mounting profile: 1.5mm, others 1.2mm

Surface finish:
- Degreasing, pickling, phosphoric, powder coated

Loading capacity
- Static loading: 60kg

Degree of protection
- IP20

Specifications:
Capacity (U) Width (mm) Depth (mm) Height (mm) Packaging Dimension (W* D* H) Volume(CBM)
9 600 600 501 670*670*560 0.2513
Main Parts
S/N Specification Quantity Unit Material Surface Finish
1 Cable entry cover 3 Piece SPCC cold rolled steel t1.2 Powder coated
2 Back panel 1 Piece SPCC cold rolled steel t1.2 Powder coated
3 Frame 1 Set SPCC cold rolled steel t1.2 Powder coated
4 Side Panel 2 Piece SPCC cold rolled steel t1.2 Powder coated
5 Mounting Profile 4 Piece SPCC cold rolled steel t1.5 Powder coated
6 Lock 4* Piece -- --
7 Front door 1 Piece 5mm toughed glass/SPCC t1.2 Powder coated
8 Fan cover 2 Piece SPCC cold rolled steel t1.2 Powder coated
9 Philips head screw 10 Piece Steel Color zinc coated
10 Cage nuts 10 Piece Steel Color zinc coated
11 Allen wrench (D6) 1 Piece Steel Black
*4 Lcoks are included: 1 Front, 2 Sides and 1 Rear Lock

Packaging Information:
9U BLACK WALL MOUNT CABINET DOUBLE SECTION (Pre-Assembled): 27 x 23 x 21 (in) @ 60lbs
