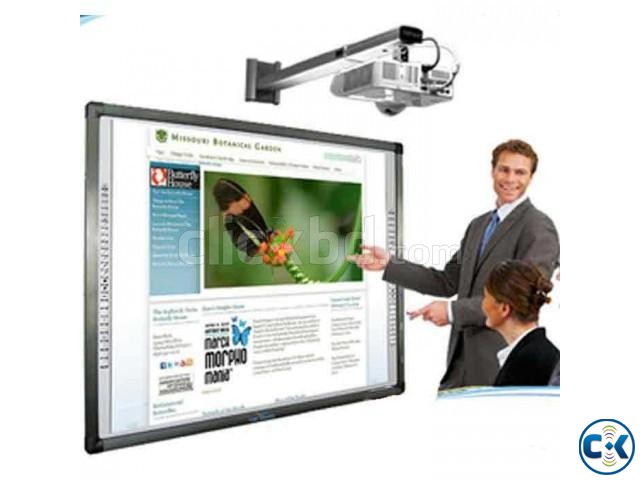

Interactive Whiteboards

Core advantages
1. Ten users write at the same time, infrared sensor technology, with finger touch directly for operation; Strong anti- resistance to light, work directly under sunlight;
2. Module design, simple combination, installation and parts exchange after sale actively;
3. Nano surface, write by normal EXPO pen, both normal brush and even wet cloth can clear well;
4. Oxidized aluminum out frame, exquisite and elegant noble sense design;
5. Intelligent gesture-recognition like start software by palm, turn page by hand waving, moving writing on page by fingers, fist work as eraser.
6. USB works as direct power supply, update and data transfer.
7. Free software update for lifelong.

Size scale Active area(mm) Outline area(mm)
TE-78FTW 16:9 1640*902 1776*1038
TE-82FTW 16:9 1640*984 1776*1120
TE-86FT 4:3 1642*1109 1776*1245
TE-88FTW 16:9 1763*1107 1899*1243
TE-96FTW 16:9 1968*1148 2104*1284
TE-102FTW 16:9 2132*1148 2268*1284
TE-108FTW 16:9 2255*1189 2391*1325
TE-116FTW 16:9 2378*1394 2514*1530
TE-120FTW 16:9 2542*1476 2678*1612
The above parameters, if there is any change, will be subject to the actual products.
Basic Data Accessories
Boards Material Optional Pen and pointer
Users Ten users TACTEASY Software CD
Technology infrared USB Cable
Writing Type finger or pen User Guide Manual
Positioning Accuracy ≦0.2mm Wall Mount
Touch Preciseness 32768*32768 Mobile Mount optional
Cursor Speed ≥125dots/second Hardware Features
Transferring Rate 12m/s Scanning form Auto
Scanning Rate first point 25ms consecutive points 8ms Firmware Version Always updating
Consumption Current ≦100mA Inner PCB Version Universal, no need serial No.
Stand USB Length 6m(10m optional) Data Port USB
Working Environment Direct under the sunlight Device driver version
DL-USB
