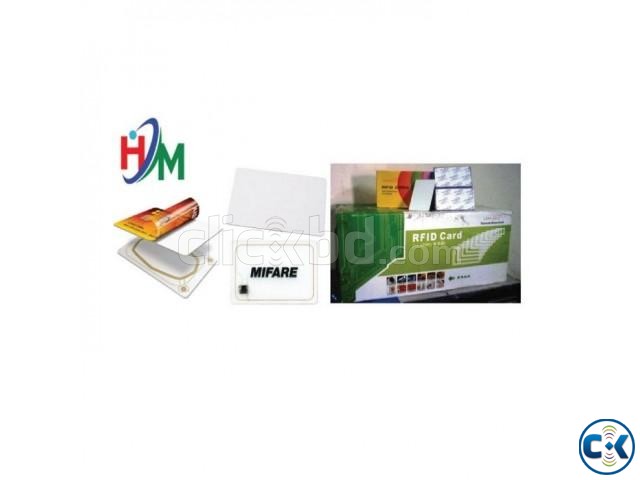

Mango Mifare Smart Punch Card.

Mango Mifare Smart Punch Card.
Quick Details
ID No: HM21617-1113
Price: 35 BDT
Brand: Mengo
Model: Mifare Smart Card
Product Title: Smart/RFID/Proximity/Punch/Thin/Intelligent and Programing Card.

Mango Mifare Smart Punch Card
1.1 MIFARE®, RF Interface (ISO/ IEC 14443 A)
* Operating frequency: 13.56 MHz
* Data transfer: 106 kbit/s
* Data integrity: 16 Bit CRC, parity, bit coding, bit counting
* Anti-collision
* Typical ticketing transaction: < 100 ms (including backup management)
* Contactless transmission of data and supply energy (no battery needed)
* Operating distance: Up to 100mm (depending on antenna geometry)
1.2 EEPROM
* 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
* User definable access conditions for each memory block
* Data retention of 10 years.
* Write endurance 100.000 cycles
1.3 Security
* Mutual three pass authentication (ISO/IEC DIS 9798-2)
* Individual set of two keys per sector (per application) to support multi-application with key hierarchy
* Unique serial number for each device
NXP has developed the MIFARE® MF1 ICS50(MIFARE® Classic 1k ) to be used in a contactless smart card according to ISO/ IEC 14443 Type A.
The MIFARE® MF1 IC S50 IC is used in applications like public transport ticketing where major cities have adopted MIFARE® as their e-ticketing solution of choice, and also payment (Rechargeable).
Application
Access Control
Time Attendance
Hotel Key Card
Public transportation
Event ticketing
Gaming & identity
