Product Description

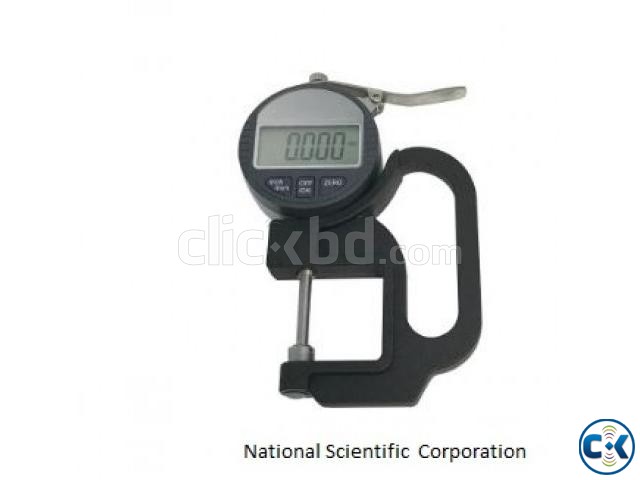

0-25mm Digital Thickness Gauge 0.001 mm Micron Thickness Gauge Measure for Glass,Paper
Product Parameter
Model Number | BY04 |
Measurement Range | 0~25mm |
Measurement Depth | 30mm |
Resolution Ratio | 0.001mm |
Material | Metal, Stainless Steel Probe |
Character:
Easy to operate, reading clear, portable carry, widely use.
Division value | Measuring Range | Maximum measuring depth | Measuring plane | Varation of indication | Indication error | |||
Surface hardness | Surface roughness | Flatness | Parallelism | |||||
0.1 | 0-10 | ~15 | ≥399HV or (42HRC) | ≤Ra0.4μm | ≤0.01 | ≤0.02 | ≤0.02 | ±0.05 |
0-15 | ||||||||
0-20 | ~270 | |||||||
0.01 | 0-10 | ~26 | ≤Ra0.4μm | ≤0.005 | ≤0.006 | ≤0.005 | ±0.014 | |
~30 | ||||||||
~120 | ||||||||
0-30 | ~40 | ≤0.012 | ≤0.01 | ±0.02 | ||||
0.001 | 0-1 | ~52 | ≤Ra0.2μm | ≤0.001 | ≤0.003 | ≤0.001 | ±0.005 |
