1KM WiFI Range Extender_Cloud Control_01756812104

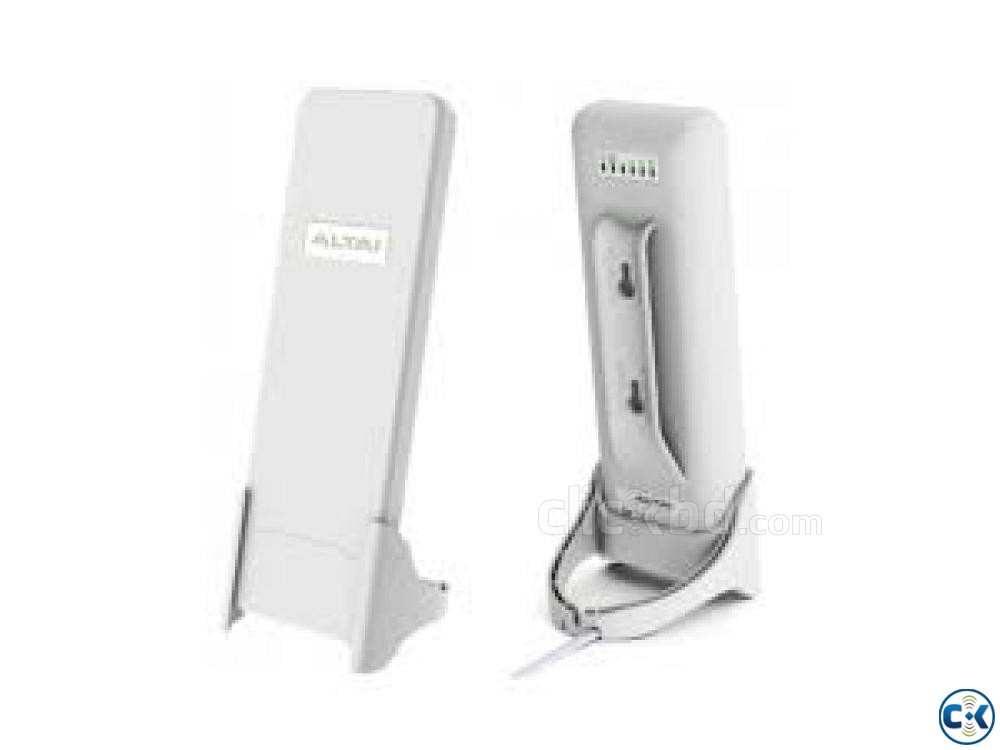

Product details of ALTAI C1n wireless access point:
.
The Altai C1n WiFi CPE/AP is designed as an
essential component in the Altai Super WiFi system to extend outdoor Wi-Fi coverage into indoor areas for broadband connectivity or use as an AP forbpico coverage.

The Altai C1n employs patented smart signal processing algorithms and antenna design to increase Wi-Fi signal strength (transmit and receive)
by as much as 16 dB in areas covered by an A8n Super WiFi Base Station or A2 WiFi Access Point. It can be installed exactly where the throughput is required to boost up substantially and provides greater flexibility and cost savings to Wi-Fi deployments.

Super Long Range Coverage:

Max. LOS Access 800 m/ext. (2.4 GHz)
Max. LOS CPE 4 km to A8-Ein(ac)
3 km to A3-Ei
Max. LOS Bridge 20 km
Max. Data Rate 300 Mbps

#Specifications:

Wireless Interface
802.11b/g/n (2x2) Radio
* Operating Mode AP/ CPE/ Bridge/ Repeater
* Standard IEEE 802.11b/g/n
* Operating Frequency 2.400 – 2.485 GHz (Ch 1-13)
* Transmit Power 29 dBm (Max.)
26 dBm (Per Chain)
* Receiver Sensitivity (Typical)
802.11b 11 Mbps -91 dBm
1 Mbps -96 dBm
802.11g 54 Mbps -81 dBm
6 Mbps -95 dBm
802.11n HT20 -95 dBm
HT40 -92 dBm
*16 SSID (Max.)
* 802.11h*, 802.11k*, 802.11r*, 802.11v*, 802.11w*
* Hotspot 2.0
* Altai AirFi™ Throughput Optimization
* Band Steering
* WMM (802.11e)

#Antena

* Built-in 2.4 GHz Antenna 10 dBi Dual Slant ±45° Sector
* Horizontal Beamwidth 70° (-3 dB)
* Vertical Beamwidth 30° (-3 dB)
* Front-to-back Ratio -20 dB (Max.)

#Network

* Switch (Bridge) and Gateway Mode
* IPv4/ IPv6 Dual-stack
* NAT
* DHCP Client/ Server
* PPPoE Client
* VPN (IPsec)
* VLAN
* Bandwidth Control Per VAP/ Client
* Multicast Rate Filter/IGMP Snooping

#Security

* Authentication – Open system, Shared key, WPA/
WPA-PSK, WPA2/ WPA2-PSK, 802.1x (EAP-PEAP/ TLS/ TTLS/
SIM/ AKA)
* Encryption – WEP, TKIP, AES
* Inter/ Intra-client Isolation
* MAC-based Access Control (White/ Black List)
* RADIUS
* Active directory
* Firewall
* WIPS

#Management:

* Cloud or Server-based Management by AltaiCare
* Controller-based Management by Access Controller
* Web User Interface
* Command Line Interface (SSH)
* SNMP v1/ v2c / v3
* MIB2/ IF-MIB/ Altai Enterprise MIB
* Syslog
* Auto Channel Selection and TX Power Control
* Spectral Analysis
* KPI Monitoring
* Client OS Detection

#POwer
* Power Supply 18V Passive PoE PD or 802.3af
PoE PD via Adapter
* Power Consumption 6 W (Typical) / 8 W (Max.)
* Operating Temperature -20 °C to +55 °C
* Storage Temperature -40 °C to +80 °C
* Humidity 5 to 95% (Non-condensing)
* Wind Loading Up to 200 km/h (124 mph)
* Weatherproof Outdoor UV Stabilized Plastic
IP55 Compliant
* FCC / CE / Others

Control Traffic Throughput Flexibly:

From day one, the C1n is designed and purposebuilt for service operators. Its built-in traffic
shaping based bandwidth control mechanism
allows the control of uplink and downlink traffic
throughput on a per-client or per-VAP basis. A
full set of networking and management features
are available to meet carriers’ requirements.

Altai C1n for Wireless Broadband:


The C1n is a key component in wireless
broadband access provisioning. It can be
installed outdoor by the side of a window,
mounted to a wall, at the rooftop of a building or
placed at the desktop inside for fixed
broadband access provisioning.

Altai C1n for Access Point:

The C1n can also be used as a standalone Wi-Fi
access point for smaller networks supporting
802.11b/g/n clients. With its high gain built-in
smart antenna, it is an important solution to
complement the large coverage and high
throughput of an A8n series Super WiFi Base
Station and A2 Access Point to improve Wi-Fi
performance.
