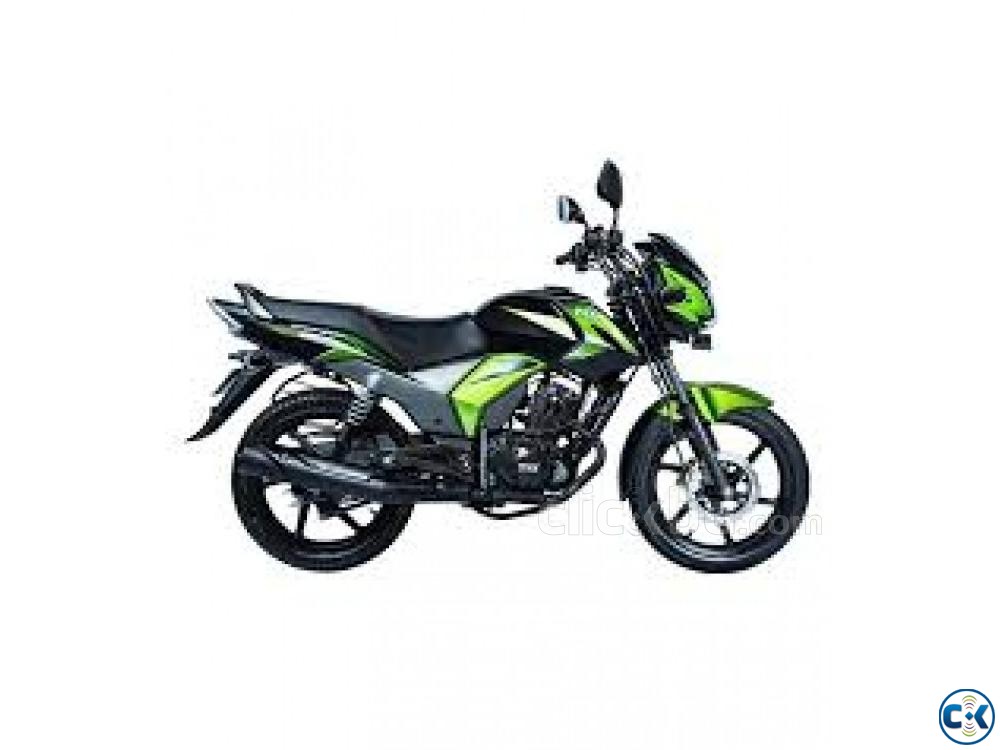

TVS Stryker 2019

Product Details:

Brand: TVS
Model: Stryker 125cc

ENGINE
Type: single cylinder , 4 stroke, air cooled spark ignition engine
Cylinder: 57 mm
Stroke: 48.8 mm
Piston displacement: 124.5 cc
Compression ratio: 9.4: 1.0
Carburettor: UCAL UCD 25
Air filter: Paper filter element
Lubrication system: Positive lubrication
Maximum power in kW: 8.0 (11 bhp) @ 8000 rpm
Maximum torque in Nm: 10.8 Nm @ 5500 rpm
Maximum speed: Around 100 km/hr
Engine idling rpm: 1400 ± 100 rpm ( under warm condition)
Starting system: Kick starter /Electric starter

TRANSMISSION
Clutch: Wet multiplate type
Transmission: 4 speed constant mesh
Gear shift pattern: All up heel-toe shift
Primary reduction: spur gears
Secondary reduction: Chain and sprockets

GEAR RATIOS
I gear: 3.273
II gear: 1.765
III gear: 1.238
IV gear: 0.958
Primary reduction: 3.250
Final reduction: 3.214

CHASSIS
Overall length: 2013 mm
Overall width: 752 mm
Overall height: 1085 mm
Ground clearance: 173 mm
Wheel base: 1273 mm
Steering angle: 88 degree
Caster angel: 25 degree
Kerb weight: 117kg (with tool kit & 90% of fuel)
Pay load: 130 kg
Maximum laden weight: 227 kg
Frame: Single cradle tubular frame
Front suspension: Telescopic hydraulic type
Rear suspension: Toggle link with hydraulic damper
Trail length: 65 mm

TYRE
Front Tyer: Drum 2.75*17 (Tube type)
Disc 2.75*17 tubeless
Rear Tyer: Drum 90/90*17 (Tube type)
Disc 90/90*17 tubeless
Tyre pressure (cold condition)
Tyre Pressure Front: 1.69 kg/cm² (24 PSI)
Rear -solo: 2.00 kg/cm² (29 PSI)
Rear – Pillion: 2.53 kg/cm² (36 PSI)

BRAKES
Front: hand operated, 240mm dia.disc*
Hand operated, internally expanding 130 mm dia.drum
Rear: Foot operated, internally expanding 130mm dia.drum

ELECTRICAL
Ignition system: DC-Digital TCI
Spark plug: BOSCH UR4KC
Spark plug gap: 0.76~ 0.8 mm
Magneto: 12V,110W (fly wheel magneto)
Battery: 12V,5Ah Lead Acid type
Head lamp: 12V, 35/35W×1
Body earthing: Negative terminal
Tail/break lamp: 12V 5/21W*1, LED
Turn signal lamp: 12V, 10W ×4
Position Lamp: 12V, 3W×2
Speedometer lamp: 12V, 1.7W ×2
Turn signal indicator Lamp: 12V, 1.7W×1
Head lamp fuse: 12V, 10A*1
Number Plate lamp: 12V, 4W ×1
Horn: 12V DC
Main Fuse: 12V, 10A × 1

CAPACITIES
Fual tank including reserve*: 14.5 litres (reserve 2.7 litres)
Fuel: Unleaded Petrol
Engine cum transmission oil: TVS TRU4 4T PREMIUM oil, (SAE 10W30 SL-JASO MA2)
Engine cum transmission oil: 1000 ml capacity
Front fork oil grade: IOC / Castrol teleshockab oil
Front fork oil capacity: 155 ± 2ml per leg (GIL make)
140 ± 2.5 ml per leg (TOP make)
