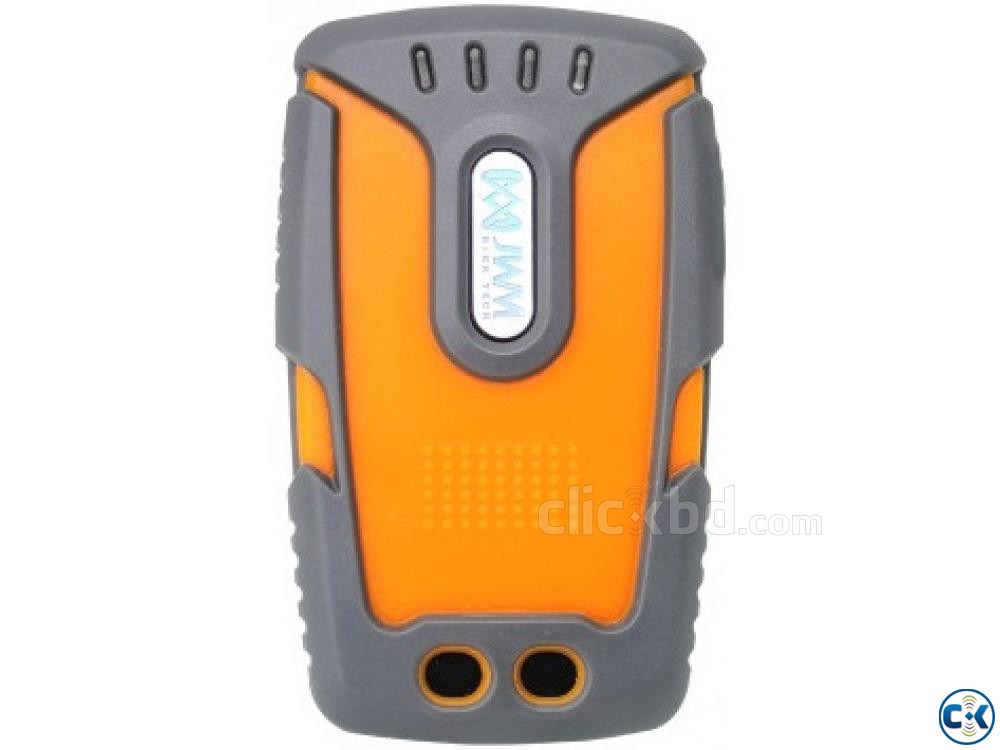

JWM WM-5000L5 Real Time Online Guard Tour System

JWM WM-5000L5
Model
WM 5000L5
Physical
Metal body with silicon shell outside
Dimensions
102mm*62mm*26mm
Weight
144g
Tag
Reading RFID
Frequency
125KHz
Reading Distance
3
5cm
Operating Temperature
-
40 to +85
Storage Capacity
15,000 pieces records
Memory
16Mb Flash ROM
IP
Rating IP67
Charging
Time 3 hours
Battery
3.7V Lithium Recharge Battery
Standby Time
28 Hours
Sending data for 70s intervals ）、 15
Hours Sending data for 10s intervals
Communication
USB cable
real time (GPRS)
5320A: 850/1900
5320E: 900/2100
Humidity
10% to 90% non
condensing

Description:
Green light flashes
Standby
Blue light flashes each second
Register the network
Blue light off and 1 vibration
Register the network successful
Blue light off and 3 vibrations
Register the network failed
Blue light on solid
Sending the data
Press the right button for 4 seconds
Sending manual alarm
Blue and yellow light solid
Sending manual alarm successfully
Press the left button for 2 seconds
Sending data
Blue light flashes 5 times and 1 vibration
Sending data successfully
