1000 WATTS High Wattage PA Mixer Amplifier.

AMPLIFIERS
SSA-10000
1000 WATTS
High Wattage PA Mixer Amplifier

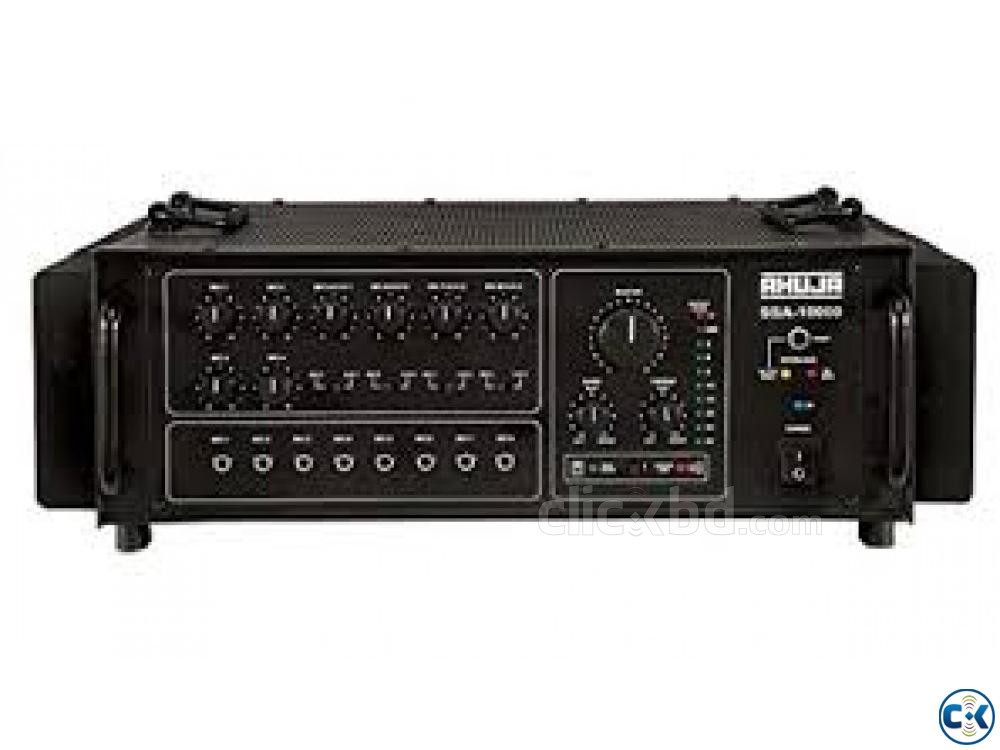

Ahuja SSA-10000 is highly reliable 1000 watts PA Amplifier. This is designed to give high power clean sound and trouble free operation under extreme climatic conditions.
8 Mic & 4 Aux Inputs.
Aux-4 input is through RCA socket specially for connecting CD/DVD player.
Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
Line Input for connecting the output from any external mixer or permitting SSA-10000 to be used as a Booster Power Amplifier.
Resettable circuit breaker & MCB at back for protection against overload and short circuit.
Instant transfer to DC power (Car Battery) if AC power fails.
Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.


SPECIFICATIONS

Power Output

1350W Max., 1000W RMS at 10% THD, 850W RMS at 5% THD, 800W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

8 × Mic 0.8mV/4.7kΩ, 3 × Aux 100mV/50 kΩ, 1 × Aux 250mV/50 kΩ, 1 × Line 1V/50kΩ

Frequency Response

50-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

Outputs

Preamp 200mV/600Ω, Line 1V/1kΩ

Speaker Outputs

2Ω, 4Ω, 70V & 100V

Power Supply

AC: 220-240V 50/60Hz DC: 48V (4×12V Car Battery)

Power Consumption

AC: 1600VA DC: 12A

Dimensions

W540 × H185 × D510 mm

Weight

42.0kg
