Ashok Leyland 1616 IL 20/24 Feet 2020

ASHOK LEYLAND 1616 IL

TUSKER SUPER 1616 IL

CHASSIS SPECIFICATION 5334 mm WB (24` Feet LB)

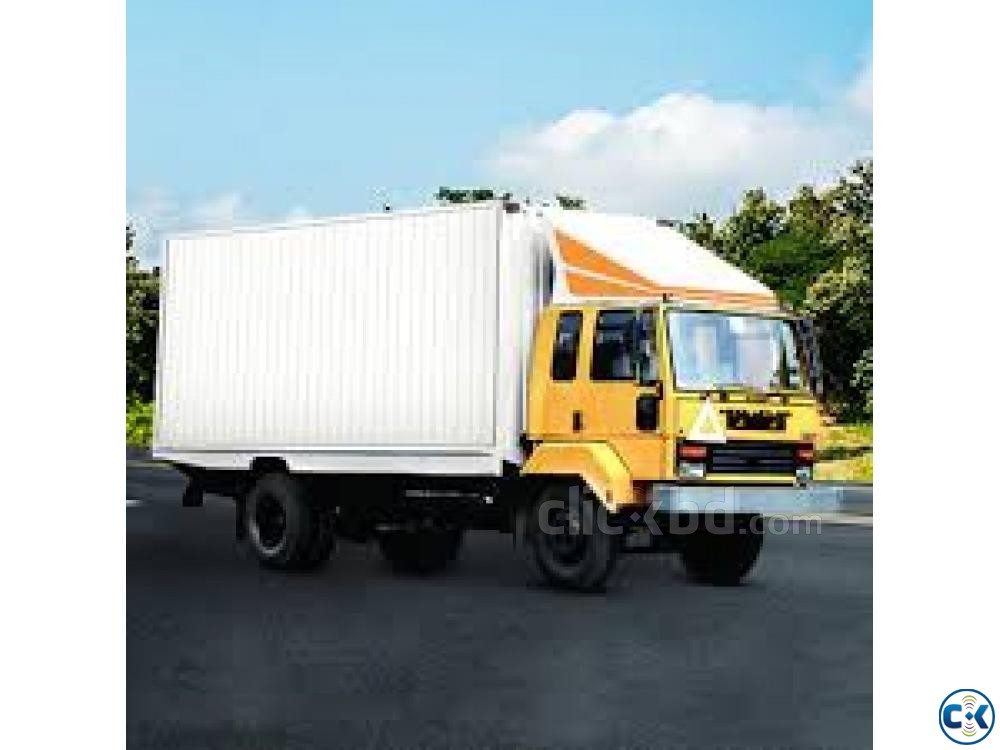

1616 IL 24 FEET COVERED VAN
1616 IL 20 FEET OPEN TRUCK

ENGINE
Deplacement: 5759

Max Out put: 160HP @ 2400rpm
Max. torque: 550nm @ 1600rpm
Sump capacity 16 ltr
Air Filter: Dry type

FUEL Filter: Diesel Filter cum water seperatar on the pressure side, strainer on the feed pump suction side.

FUEL tank capacity(Lts) Cooling Type : 239 ltr

Pump circulated, pressurized cooling, thermostat controlled
Cooling water capacity: 22
Radiator frontal area (sq cm) : 3579

CLUTCH: Single plate dry type 14”

GEAR BOX : 6-speed synchromesh, FGR 8.28:1

REAR AXLE : Fully floating single speed hypoid

AXLE CAPACITY-kgs : 10,200
AXLE RATIO : 6.167:1
FRONT AXLE : Forges Section Reverse Elliot Type.

Capacity (kgs): 6000

FRAME: All steel ladder type bolted construction.
SPRINGS : Semi elliptical laminated multileaf with centre bolt arrangement.

SHOCK ABSORBER: Double acting, telescopic type on front axle only.
STEERING: Integral Power steering.
WHEELS & TYRES: 2 Nos in Front and 4 Nos in rear.
1 no in spare

TYRES : FRONT 10.00x20-16 Nylon
REAR
10.00X20-16 PR PD Nylon
SPARE
1no. 10.00x20-16 PR Nylon
BREAKES: Air pressure diaphragm operated with dual line ;S’ cam arrangement.

Parking brake: Flick valve operated pneumatic hand brake on rear wheel only.
ELECTRICAL SYSTEM : 24V Negative earth.

Batteries : 110amp hr. (20hr.rating)
BATTERIES: 2x12V, 80AMP Hr
FRONT END STRUCTURE type: Pressed steeel G45 mk III
CABIN : Factory built tiltable cargo sleeper cabin.

PERFORMANCE DATA : Max speed (Kmph) : 97 kmph.

Max gradeability (deg) : 25.73
WEIGHT (kgs) : Front axle : Unladen 2995/2995 Laden 6000

Rear Axle Unladen 1860/1950 Laden 10200

Total Unladen : 4855/4945 Laden 16200

SUSPENSION : Front : Double wishbone, Transverse Leaf Spring
Rear : Parabolic Leaf Spring, 2 Stages, Overslung

MAJOR DIMENSIONS (mm) : Wheel base 4700/5334

Front overhang 1390/1468

Rear overhang : 2080/2667

Overall length : 8170/9469

Overall width:
2420/2432

Front track : 1978

Rear track : 1816

Frame width (rear) : 864

Laden height : 1000

Minimum ground clearance : 253

Turning circle diameter 9430/9225

INSTALLMENT, BANK LOAN, INSURANCE, BODY & REGISTRATION FACILITY.
