JOYLIVE Elevator Bangladesh

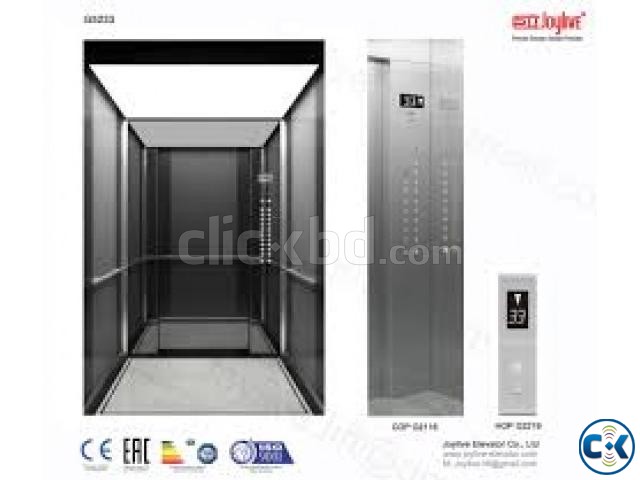

PASSENGER/HOME LIFT

    1) Brand : Joylive

    2) Type : Passenger Elevator

    3) Capacity : 450Kg/ 6 Persons

    4) Speed : 1.0 M/Sec

    5) Stop/Entrance : 7F/7S in line (Same Direction) G+1+2+3+4+5

    6) Operation : Simplex Control, Selective-Collective Automatic Control,

    7) Control : AC-VVVF,

    8) Power : 400V AC, 3-Phase, 50Hz for Main Control and 220V AC, 1-Phase, 50 Hz

    For Lighting & Operation Panel.

    9) Machine Room : Above the Hoist way

    10) Overhead : 4500mm, Pit: 1500mm, Cabin Travel: About 18m.

    11) Landing & Cabin Door Type: 2-Panel Center Opening (Automatic Operation),

    12) Cabin Materials : Etched Mirrored Stainless Steel,

    13) Ceiling Type : Standard,

    14) Cabin Door Materials : Etched Mirrored Stainless Steel,

    15) Cabin Floor : PVC Tiles,

    16) Landing Door Materials : G/F Floor-Etched Mirrored Stainless Steel,

    17) Other Doors Materials : Hairline Stainless Steel,

    18) Jamb Material & Type : Ground Floor-Wide Jamb in Mirrored Stainless Steel,

    19) Other Floors Jamb Materials: Narrow Jamb in Hairline Stainless Steel,

    20) Entrance Sill : Aluminum Sill

    21) Elevator Motor : Induction Motor- Motor Power: 5.5KW

    22) Safety Device : Door Safety Edge, Overload Device & Overload System, Emergency

    Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

    23) Spare parts: Available from ready stock

    After Sales service: 01 (One) Year free service

    24) Warranty: 12 (Twelve) months

web: www.psengltd.com

Engr. Md. Zahid Hossain

PS Engineering Ltd

House-06, Road-3/B, Sector-09, Uttara, Dhaka, Bangladesh
