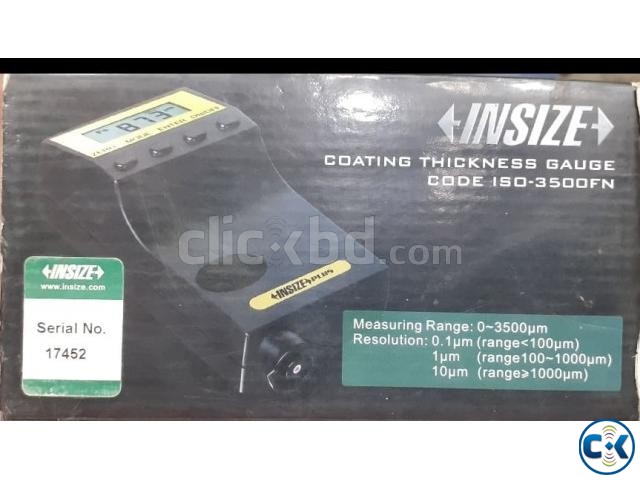

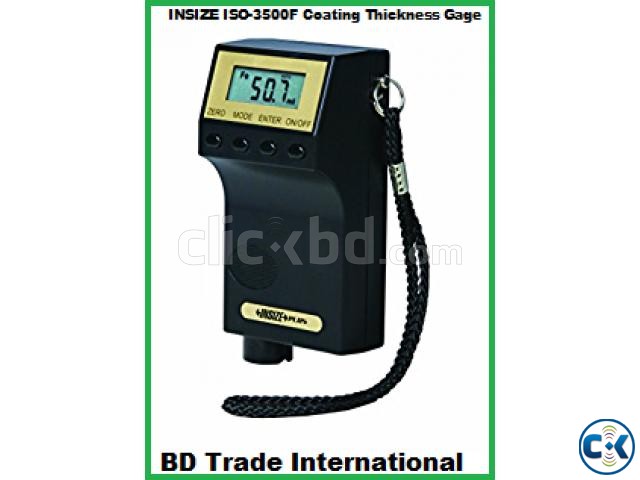

Coating Thickness Gage INSIZE ISO-3500FN Model

Contract for Purchase:
BD Trade International
Mirpur 12, Dhaka, Bangladesh
01883113100
01728780635
[email protected]
BDNDT.COM

Terms and condition:
• All Price 5% Vat & 2% AIT Excluded.
• All payments will be done by Cash & cheque.
• Pay 50% advance before Purchase.

Specifications

Measuring range : magnetic induction probe (Fe) 0-3500 µm
Accuracy : ±2%L µm <1000µm, ±3,5%L µm ≥1000µm
Resolution : 0.1µm (range 100µm) , 1µm (range 100~1000µm) , 10µm (range≥1000µm)
Repeatability : 1µm (range 0~1000µm) , 10µm (range≥1000µm)
Measuring mode : continuous or single
Calibration mode : zero calibration
Minimum measuring area : 10x10mm
Power supply : 1×9V batteries
Dimension of main unit : 118 58 38mm
Weight of main unit : 150g
STANDARD DELIVERY : Main unit, Battery (9V), Zero calibration block for Fe probe
