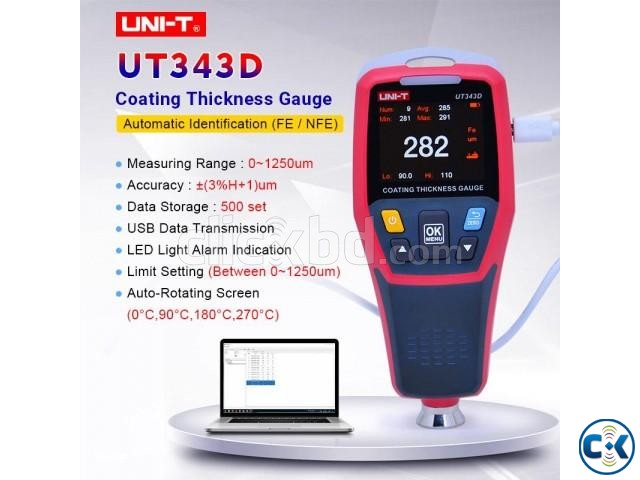

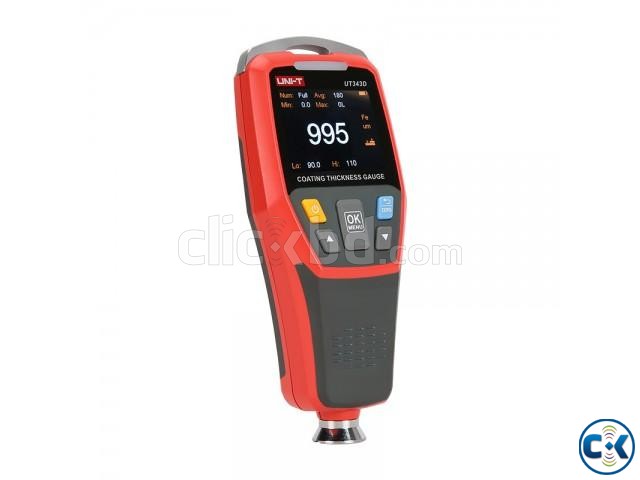

UT343D Digital Coating Thickness in BD

Product description
UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and using a 3-color LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency.
UT343 display is auto rotatable. This CE certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.
Applications:
It is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.
Specifications:
Measuring range: 0~1250um
Accuracy:±(3%H+1)um
Resolution: 0.1um (0~99.9um); 1um (100~1250um)
Measurement method: Single/Continuous
Measurement mode: Max/Min/Avg
Metal type: Ferrous/ non-ferrous
Features:
Display type: 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control: Yes
Auto rotatable screen: Yes
Unit conversion: Yes
Audio alarm: Yes
LED alarm: Yes
PC analysis software: Yes
USB communication: Yes
Quick test mode: Yes
Data storage:500 groups
Auto power off: Yes
Low battery indication: Yes
General Characteristics:
Power: 3V battery (R03) x 2
Display: 48mm x 36mm
Product color: Red and grey
Product net weight: 175g
Product size: 153.5mm x 64.5mm x 41mm

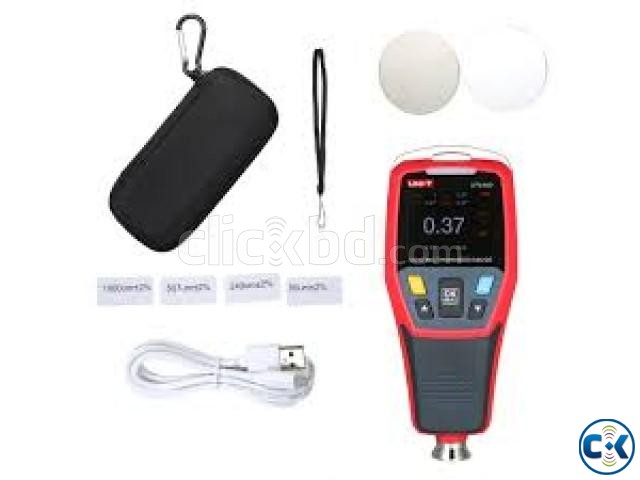

Package Includes:
1 x Coating Thickness Gauge
1 x Micro USB Interface Cable
1 x User's Manual
1 x Carrying Bag
1 x Hand Strip
1 x Standard piece
