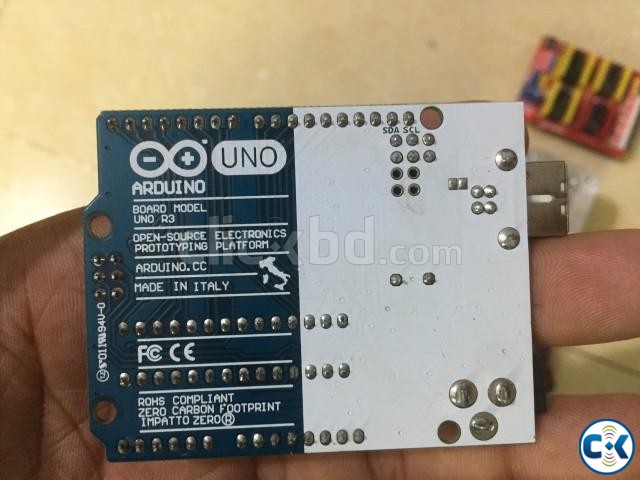

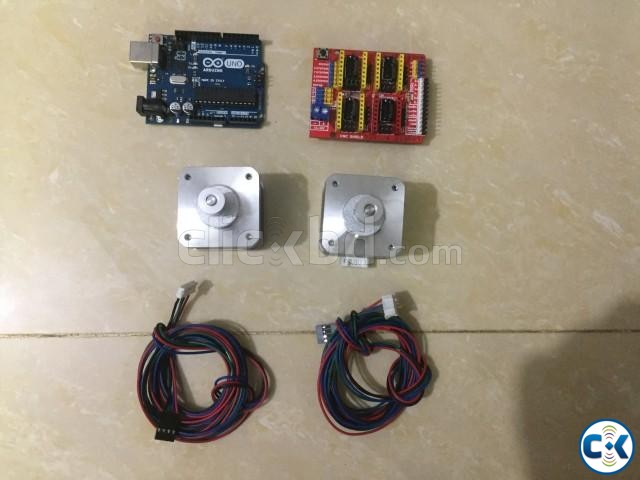

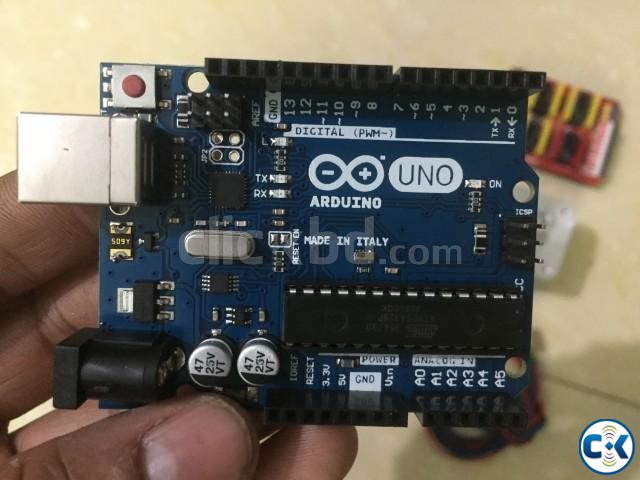

Arduino uno R3 Specifications: Microcontroller : ATmega328P Operating Voltage : 5V Input Voltage (recommended) : 7-12V Input Voltage (limit) : 6-20V Digital I/O Pins : 14 (of which 6 provide PWM output) PWM Digital I/O Pins : 6 Analog Input Pins : 6 DC Current per I/O Pin : 20 mA DC Current for 3.3V Pin : 50 mA Flash Memory : 32KB (ATmega328P) of which 0.5 KB used by bootloader SRAM : 2 KB (ATmega328P) EEPROM : 1 KB (ATmega328P) Clock Speed : 16 MHz LED_BUILTIN : 13 Length : 68.6 mm Width : 53.4 mm Weight : 25 g CNC SHIELD V3 EXPANSION BOARD FOR ARDUINO 3D PRINTER SPECIFICATION: GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals) PWM Spindle and direction pins 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13) 2 x End stops for each axis (6 in total) 40mm Nema17 Stepper Motor 42 motor Nema 17 motor 42BYGH 1.7A (17HS4401) motor 4-lead for 3D printer Brand Name: HANPOSEOrigin: CN(Origin)Certification: ULCertification: CCCCertification: ceCertification: ISOCertification: ROHSCertification: CECertification: CCCCurrent / Phase: 1.7AStep Angle(degrees): 1.8Phase: 2Type: HybridModel Number: 17HS4401Holding Torque: 4000g.cm(Size: 42*42*40 |
