QNIX 4200 Coating Thickness Gauge Price in BD

DF-76001- Standard QNix® 4200 Gage, w/Integrated Probe, Ferrous only, 120 mil = BDT 85,000.00 Taka

DF-76121 - QNix® 4200 w/Cable Probe, Ferrous only, 120 mil = BDT 95,000.00 Taka



Importer:

BDNDT.com

Delivery Time: 21-25 Business Day.

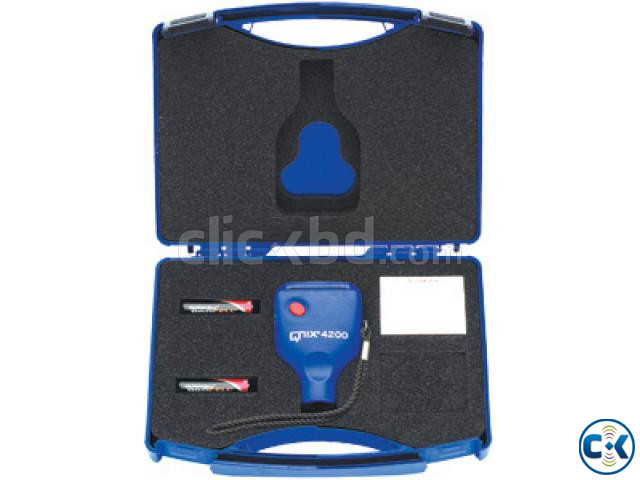

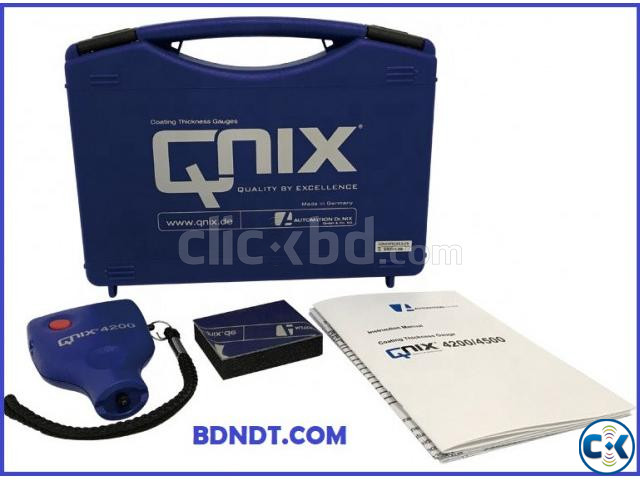

Qnix® 4200

For measurements on steel and iron, the identically designed QNix® 4200 is available - with integrated probe or with Cable Probe. Available measuring range: 0 - 3000 µm or 0 - 5000 µm

Technical Data

top

Technical Data

Measuring Principle: Two magnetic measuring principles:

FE: Magnetic-Flux/Hall Effect ref Fe*

NFe: Eddy Current (QNix® 4500 only)

Standards & Regulations: DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091 (QNix® 4500 only: ISO 2360)

Probe Type: Integrated or - optional - Cable Probe with 1 m cable

Measuring Ranges: Fe: 0.0 - 3000 µm

NFe: 0.0 - 3000 µm (120 mil) 0.0-5000µm (200 mil) (QNix® 4500 only)

Metric System µm/mil: Yes

Measuring Interval: Single measurement: 850 ms

Display Metric: From 0.0 - 999 in µm, from 1000 µm in mm

Resolution: 1 µm in the range up to 999 µm, 0.01 mm in the range from 1 mm

Accuracy Referred to Automation Reference Standard:

= ± (3%* = 2µm)

= ± (5%* = 2µm)

4200

3 mm 4200

5 mm 4500

3/3 mm 4500

5/3 mm

Fe < 2mm> 2mm

NFe < 2mm> 2mm

Minimum Measuring Area: Ø 25mm

Minimum Curvature: Convex: 5 mm; Concave: 25 mm

Minimum Substrate Thickness: Fe: 0.2mm

NFe: 0.05mm (QNix® 4500 only)

Display: Graphic-LCD

Temperature Range: 0 - 50°C (32 - 122°F)

Permitted Storage Temperature: -10 - 60°C (14 - 140°F)

Power Supply: 2 x Batteries: 1.5V (Type AA alkaline)

Dimensions (L x W x H mm): 100 x 60 x 27 (gage with integrated probe)

Weight Including Battery: Gage with integrated probe: 105 g

Gage with Cable Probe: 147g
