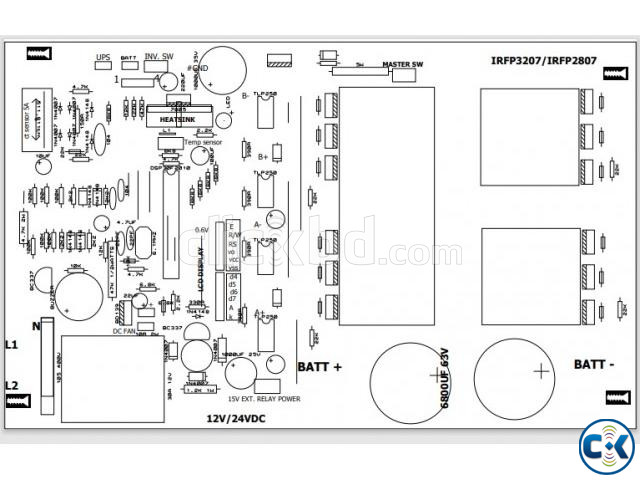

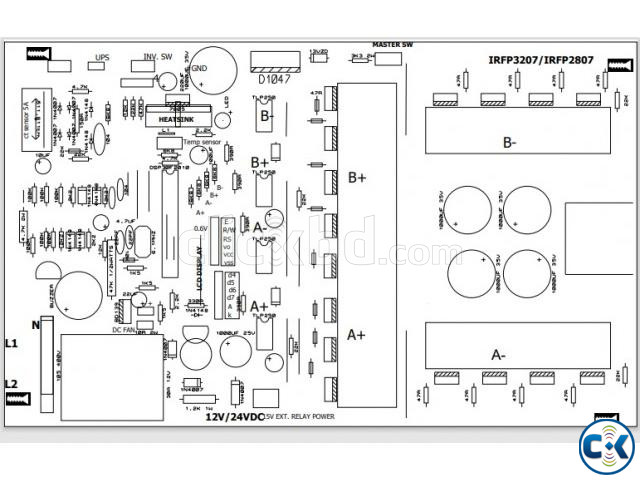

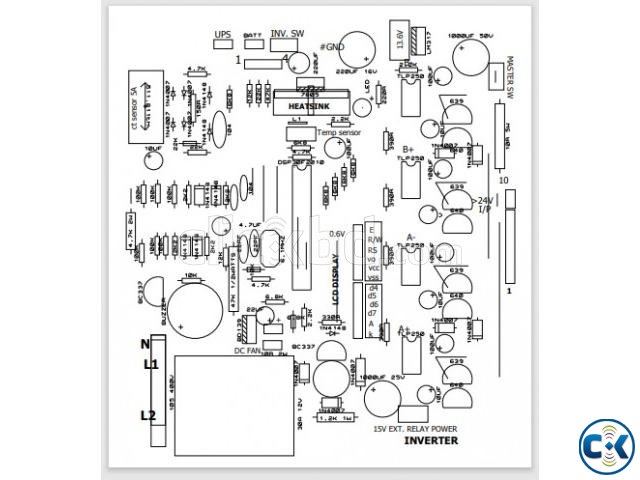

DSP based (DSPIC30F2010) Pure Sine Wave Inverter (IPS, Long Backup ups)
LCD display for indicating various status of the system like inverter voltage, mains voltage, battery voltage, % of load, overload/short circuit status, battery low status, charger status etc.
LCD based Menu driven setup of various parameters like battery full charge voltage, battery low voltage, load condition, Inverter output voltage, charging current etc.
Protections against: Overload, short circuit, battery deep discharge, battery over charge, mains over voltage, reverse connection of phase in – phase out, reverse connection of phase and neutral of mains input. In all these error conditions will be shown in the LCD display.
Priority solar charging facility: When solar charger is connected mains charger will be in stand-by and priority will be for solar charger.
Delayed inverter cutoff for conditions like battery low, overload, short circuit etc. The system will automatically restart from cutoff after a few second buzzer beeps. The system will go to permenant cutoff if the error condition exists even after 4 restart.
Bill of materials: Main PCB 850VA – Rs. 750/- or less, Transformer 850VA – Rs. 2000/-
1. LCD will display –

Battery voltage
Inverter output voltage
Percentage of load
Mains voltage
Changer on/off
Solar charging /mains charging
Inverter standby on/off
UPS mode / inverter mode
Phase input output reverse : whether mains is connected to inverter output
Neutral and phase reverse : whether neutral and phase is connected reverse
Overload : if load is above 100% and below 300%
Heavy : if load is above 300%
Short circuit
Overload trip
Heavy load trip
Short circuit trip
2. Menu driven set-up. There is no preset, the parameters such as battery low, charging current, inverter output voltage, load etc can be set by scrolling up and down keys and press enter.
3. Priority solar charging
4. Inverter/UPS selection switch, micro switch or ordinary switch selectable.
5. Inbuilt SMPS type constant current charging with full charge cut-off.
6. 20KHz operating frequency while inverter and charging, absolutely no sound.
7. Pure sine wave output
8. DSP based very low component cost design

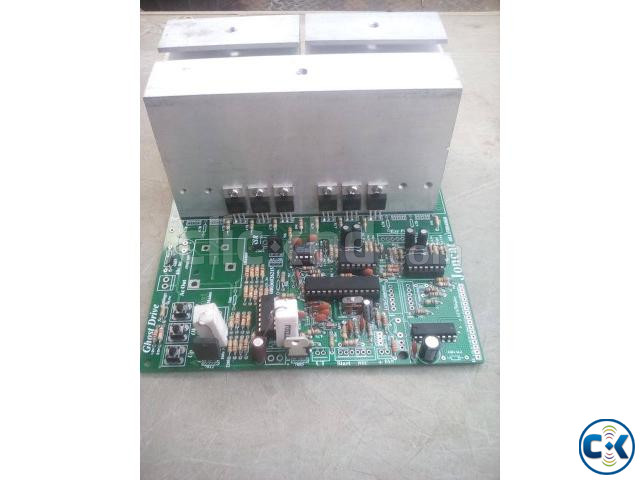

9. Single sided pcb, easy to assemble without any smd components
10. Ideal for Mixed load application
Specification

Battery Input voltage : 12V DC – 48V DC or higher
Mains Input voltage : 230V AC, 50Hz.
Mains input range : 0V – 440V, 45Hz-65Hz
AC Output (Inverter) : 230V +/- 3%, 50Hz

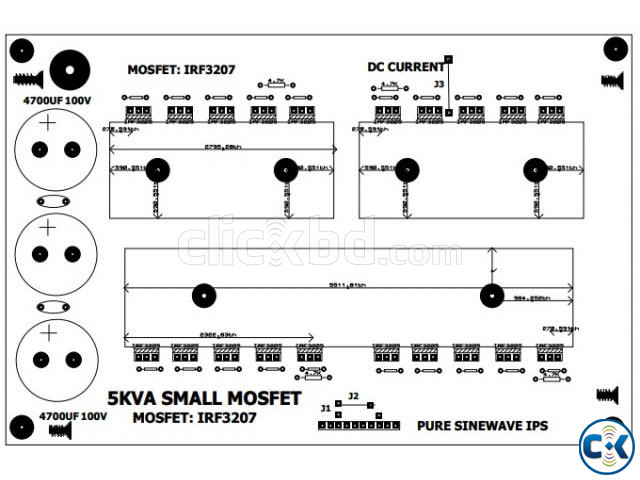

Inverter topology : Bridge type center aligned switching. MOSFET based.
Inverter output power : 300VA – 3000VA or higher up to 10 KVA
Battery charging : Constant current SMPS charging with full charge cutoff
Charging current : Settable upto 20A
Charger working range : 120V – 270V AC Mains input
Highlights

Full bridge configuration based on power MOSFETs
DSP based intelligent control
LCD based display for user-friendly display of parameters and status
Protection against 440V mains input
Protection against reverse polarity
Dynamic short circuit protection with fold-back current limiting.
Protections against all possible errors like battery low, over load, heavy load, short circuit etc.
Early warning for battery low and overload conditions. System continue normally if the error is corrected.
Cutoff and auto restart with permanent cut after 5 consecutive cutoff.
SMPS type constant current charger with full charge cutoff.
Pure sinewave output resulting in silent operation of motor and fans. Safe to all kind of loads.
Ideal for Mixed load application
Indigenous design with proven technology.
