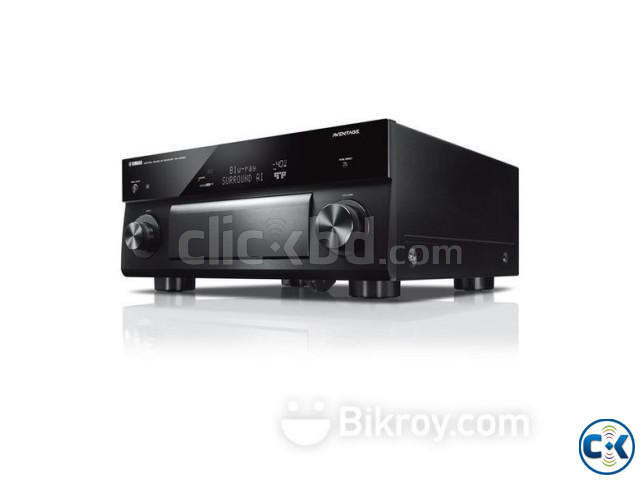

Yamaha AVENTAGE RX-A2080 9.2-Ch AV Receiver

Yamaha RX-A2080 Specs

Amplifier

Channels 9.2

Power Output per Channel 2-Channel Driven:

140 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD

155 W at 6 Ohms / 1 kHz / 0.9% THD

1-Channel Driven:

250 W at 6 Ohms / 1 kHz / 10% THD

Dynamic Power per Channel 165 W at 8 Ohms (Front)

210 W at 6 Ohms (Front)

285 W at 4 Ohms (Front)

405 W at 2 Ohms (Front)

Audio Processing

DTS Compatibility DTS-HD Master Audio, DTS:X

Dolby Compatibility Dolby Atmos, Dolby Digital Plus, Dolby TrueHD

Auro 3D Support No

Upmixing Technology Dolby Surround

Supported File Formats 11.2 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA

Video

HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma

Pass-Through Support 4K60p 4:4:4 (BT.2020)

Upscaling 4K UHD

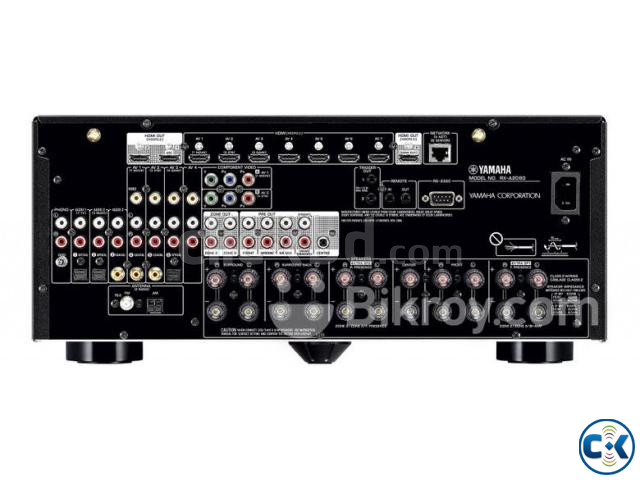

Connectivity

Rear A/V Inputs 7 x HDMI

3 x Optical TOSLINK

3 x Digital Coaxial

2 x 3RCA Component

4 x RCA Composite

7 x Stereo RCA

1 x Stereo RCA (Phono) with Ground Screw

Rear A/V Outputs 3 x HDMI

2 x RCA Subwoofer Pre-Out

1 x Stereo RCA Zone 2 Pre-Out

1 x Stereo RCA Zone 3 Pre-Out

1 x 7-Channel RCA Pre-Out

Front I/O 1 x 1/4" / 6.35 mm Headphone Output

1 x USB Type-A

1 x 1/8" / 3.5 mm Setup Mic Input

1 x Stereo RCA Input

Other Rear I/O 1 x FM Antenna Terminal

1 x AM Antenna Terminal

2 x Bluetooth/Wi-Fi Antenna Terminal

1 x RJ45 (Ethernet)

2 x 1/8" / 3.5 mm (12 V Trigger) Output

1 x 1/8" / 3.5 mm (Remote) Input

1 x 1/8" / 3.5 mm (Remote) Output

1 x DE-9 (RS-232C)

Speaker Connectors 11 x Binding Post Pairs

HDCP Support Version 2.2

Audio Return Channel (ARC) Yes

HDMI CEC Yes

Wireless Connectivity

Wi-Fi Yes

Bluetooth Yes

Supported Audio Codecs AAC, SBC

Wireless Audio Protocols Air Play

Tuner Section

Tuner Type AM, FM

Power

Power Consumption Standby: 0.1 W

Physical

Dimensions (W x H x D) 17.1 x 7.5 x 18.6" / 43.5 x 19.1 x 47.3 cm (Antenna Removed)

17.1 x 10.6 x 18.6" / 43.5 x 27.0 x 47.3 cm (Antenna Up)

Weight 37.5 lb / 17 kg
