GSM/GPRS/GPS Car Vehicle Bike Personal Locator Tracking

Description

GSM/GPRS/GPS Tracker Car Vehicle Bike Personal Locator Tracking

Size: 43.2 x 32 x 13.6 mm
Weight: 30g
Connection: GSM / GPRS
GSM Frequency: 850/900/1800/1900 MHz
Charger Input: AC110-220V 50/60 Hz
Charger Output: DC5V 500mA
Battery: Rechargeable battery 3.7V 500mA Li-ion battery
Storage Temperature: -40 to 80 degrees
Working Temperature: -20 to 55 degrees
Hunidity: 5%-95% non-condensing
How does it work:
It's simple. Your surveillance operation will be underway in 4 simple steps:
1. Insert a mobile phone SIM card in the device (E.G. free PAYG SIM card from O2 etc)
2. Conceal the device where it cant be seen...
3. Dial the pay as you go number from your phone.....
4. Listen - now you can hear what they are really talking about...
Power on: open the back cover, put the SIM card into the seats, then it is automatically power on. When booting, indicator will light for 10 seconds, after the indicator is off, cover the back cover then it can be used.
Sound control dialing: use mobile phones or fixed-line to get through SIM card number in the alarm, hang up the machine when hearing the sound of the machine about 3 seconds, and that means it sets up successfully. When there is a sound above 45 db within 10 miters around the alarm, the call will be automatically make call number which you set before.
Environmental monitoring: starting up normally, dial alarm number, it will be easy to hear the situation within 10 miters around the machine after waiting for five seconds.
Send 0000 SMS to turn off sound control function.
Send 1111 SMS to turn on sound control function.
Note:
1.This product does not rely on GPS positioning, rely on the GSM/GPRS baseband station location.
2.As to the review of my customers,this Mini A8 Tracker could not be used in El Salvador/Slovakia/Spain/UK/Sri Lanka,due to the GPRS Network.
Package includes:
1 x Mini Global Tracker
1 x User Manual
1 x USB Cable

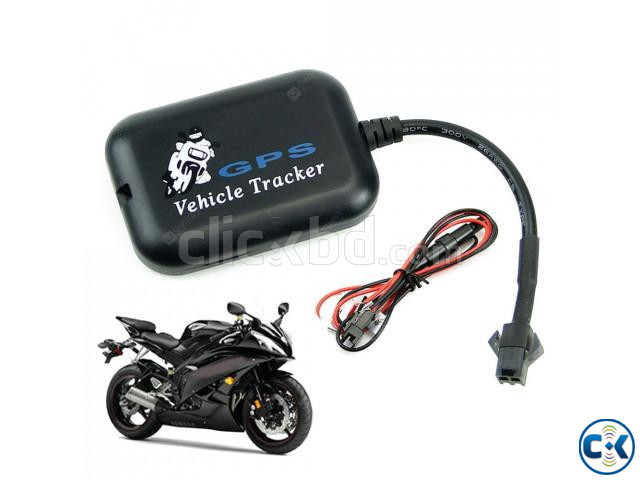

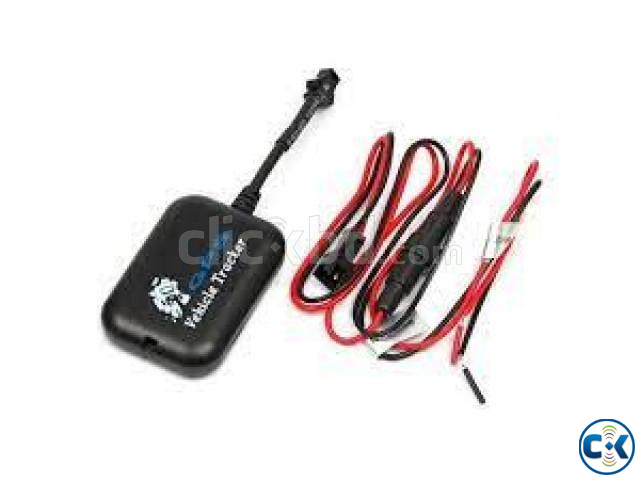

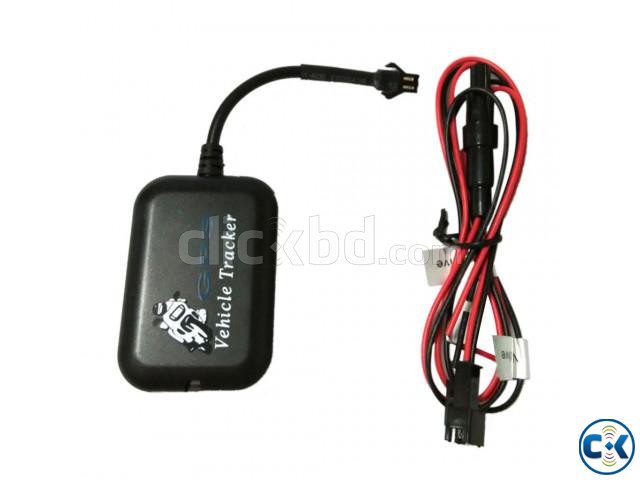

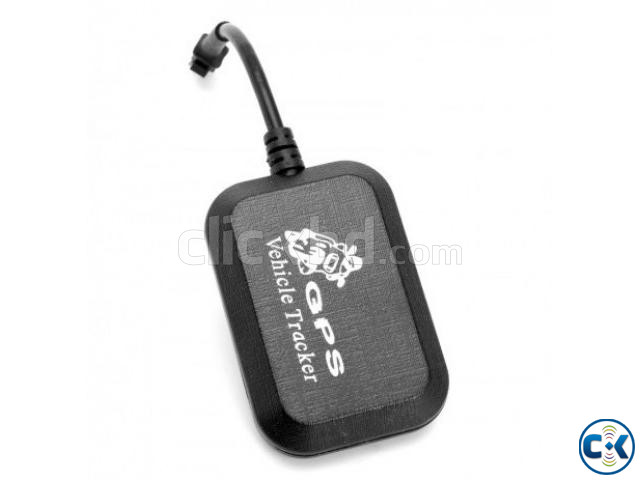

TK110 GPS Tracker:
100% Brand new and High quality.
Quad band &built-in antenna.
Two way locating methods based on MBS and GPS.
Support web, SMS and Google map link, no need of platform registration.
It needs password to make and change any setup, protect your privacy.
It can detect and fix some problems by built-in monitor CPU.
Built-in turn on/off power, supports 7-30V input voltage, suitable for all cars.
It supports hidden and open installation.
Location inquiry by SMS or GPRS (TCP/IP).
It can take power supply from car cigarette lighter or car storage battery.
LED indicators to show working status at any time.
It can accurately position even when the signal is weak.
Online real-time tracking, report location and emergency to internet and monitor NO. automatically.

Specifications:
GSM:850/900/1800/1900MHz
GPRS: Class2,TCP/IP built-in GSM mODULE
GPS Module:SIRF Star III/LP
GPS Channels:20
Tracking Sensitivity:-159dBM
Acqusition Sensitivity:-144DBM
Locating Time Cost:
Hot start:<2secs(Open sky)
Warm Start:<15sec
Cold Start:<38sec(Open Sky)
Antenna: Built-in GSM,GPS antenna with low noise and high gain
Function Buttons:Power,SOS
LED indicator: Three LED indicator GPS-blue,GSM-green,Power-red
Power input:Car power supply:7~30v DC

Package Includes:
1 x GPS Tracker TK110
1 x Wire (The color of wire will send at random)
1 x English Manual

Product type: GPS Trackers
