(Jakosc) Spain 450kg 7 floor lift sole agent in bangladesh

Corporate Office: House-06, Road-3/B, Sector-09, Uttara, Dhaka-1230, Bangladesh

Branch Office: Khulna, Bogra, Rajshahi, Pabna, Sirajganj, Maymonshing, Foridpur, Shatkhira.

Available stock: Perkins, Cummins,Ricardo, Duetz (5KVA to 500KVA) Generator/Lift

====================================================

LIFT Company Bangladesh

1) Brand : Jakosc

Shipment: Spain

2) Type : Passenger Elevator

3) Capacity : 450Kg/ 6 Persons

4) Speed : 1.0 M/Sec

5) Stop/Entrance : 7F/7S in line (Same Direction) G+1+2+3+4+5

6) Operation : Simplex Control, Selective-Collective Automatic Control,

7) Control : AC-VVVF,

8) Power : 400V AC, 3-Phase, 50Hz for Main Control and 220V AC, 1-Phase, 50 Hz

For Lighting & Operation Panel.

9) Machine Room : Above the Hoist way

10) Overhead : 4500mm, Pit: 1500mm, Cabin Travel: About 18m.

11) Landing & Cabin Door Type: 2-Panel Center Opening (Automatic Operation),

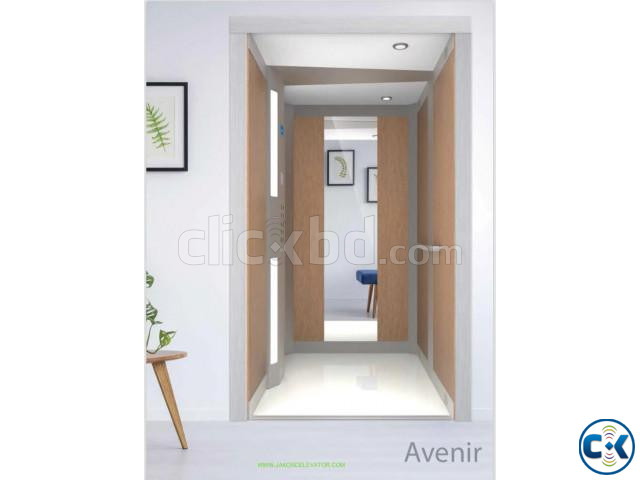

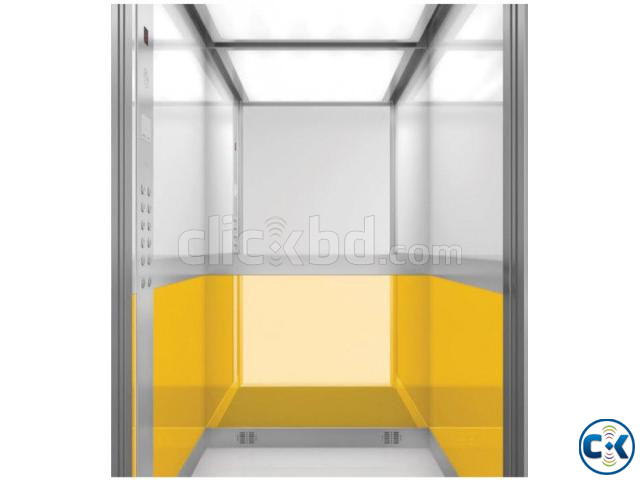

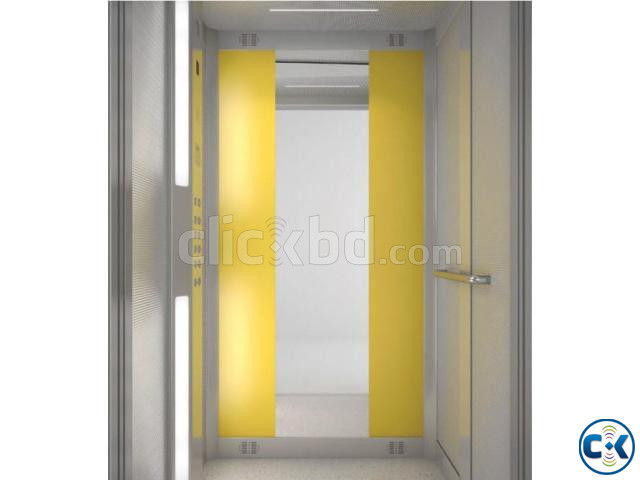

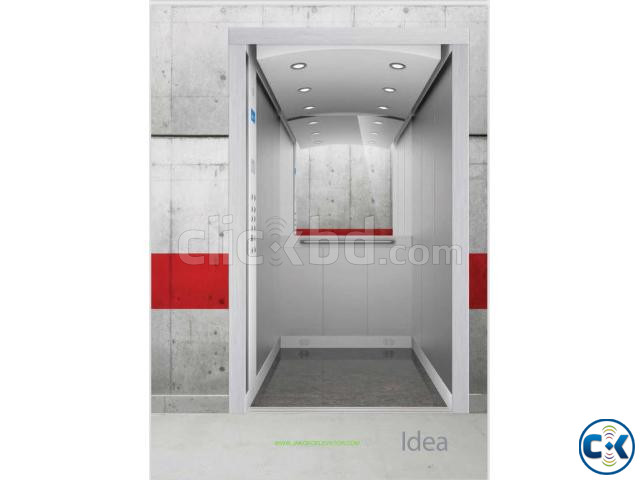

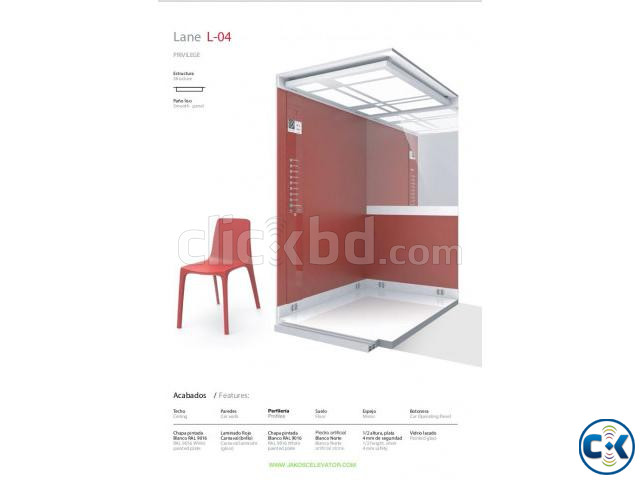

12) Cabin Materials : Etched Mirrored Stainless Steel,

13) Ceiling Type : Standard,

14) Cabin Door Materials : Etched Mirrored Stainless Steel,

15) Cabin Floor : PVC Tiles,

16) Landing Door Materials : G/F Floor-Etched Mirrored Stainless Steel,

17) Other Doors Materials : Hairline Stainless Steel,

18) Jamb Material & Type : Ground Floor-Wide Jamb in Mirrored Stainless Steel,

19) Other Floors Jamb Materials: Narrow Jamb in Hairline Stainless Steel,

20) Entrance Sill : Aluminum Sill

21) Elevator Motor : Induction Motor- Motor Power: 5.5KW

22) Safety Device : Door Safety Edge, Overload Device & Overload System, Emergency

Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

23) Spare parts: Available from ready stock

After Sales service: 01 (One) Year free service

24) Warranty: 12 (Twelve) months
