IOI-1394R3A 3-port IEEE 1394a FireWire HUB (Repeater) Corner

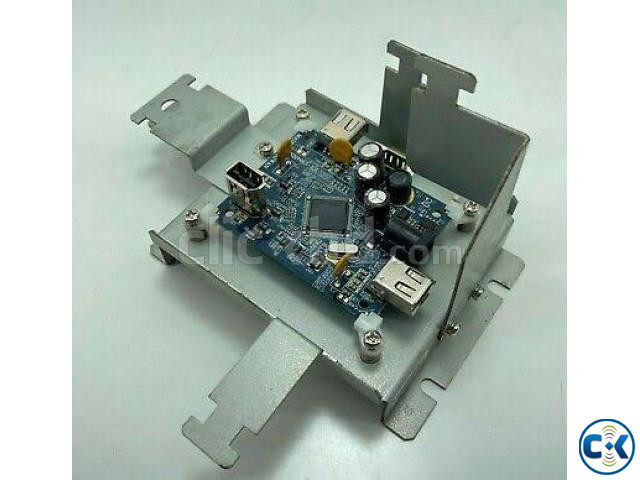

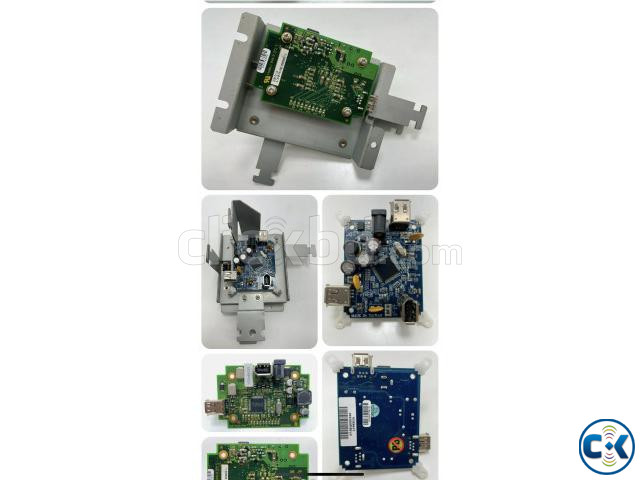

Furuno 001-119-660-00 24P0080 FWR-S100-PAA IOI-1394R3A Repeater Board VR3000 .

Introduction

1394R3A is a standard IEEE1394a repeater, extending your signal an additional 4.5 meters and adding one more FireWire (IEEE 1394) port. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.

Advantages:

Lower active and idle power consumption

Ultra low-power mode which is less than 150 uA when no ports are active

Fully 1394a compliant including extended TPbias mode to accommodate Sony DV Camcorder hot-plug connectivity

Technical Specifications

Chip:

Texas Instruments TSB41AB3

IEEE 1394 Standard Support:

Fully compliant with provisions of IEEE Std 1394-1995 for high-performance serial bus and the IEEE Std 1394a-2000.

1394 Bus Transfer Rate:

100 / 200 / 400 Mbps

FireWire Connector:

Three IEEE Std 1394a-2000 Fully Compliant Cable Ports

DC Power Connector:

DC - Walkman-type 2.0 mm DC Jack

DC Power Input Range:

DC 8V~30V / max. 1.35A

Dimensions

1.95cm (W) x 7.7cm (L) x 6.38cm (H) (includes Connector)

Net Weight

53.7g

Applications

Cable Extension

Add one more port

1394R3A is good for Corner-Type application

Certifications

CE Test: Pass

FCC Test : Pass

VCCI Test: Pass

C-tick EMI Test: Pass.
