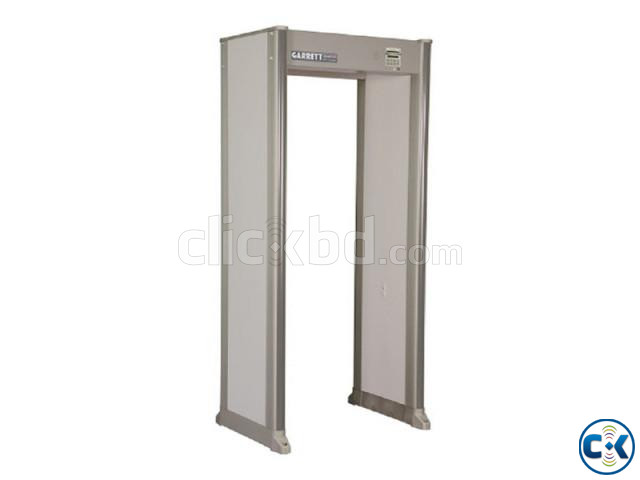

GARRETT PD 6500i ™ Walk-Through Metal Detector (USA)

eatures:
Up to 200 distinct sensitivity levels, 33 independent zones,
LCD display, over 20 application programs included, alarm light,
LED bar graph, control touch pads, three access levels of security clearance tamper-proof settings,
zone sensitivity boost adjustable in six areas, self diagnostic program complete and automatic,
10-hour or 30-hour backup optional battery pack, power fully automatic 100 to 240 VAC 50 or 60 hertz 45 watt,
passageway interior size 30″ x 80″ x 23″, overall exterior size 35″ x 87″ x 23″,
shipping size 35.5″ x 91.5″ x 6.25″, shipping weight 74 kg.

Product Brand: GARRETT
Model: PD 6500i
Origin: USA
Warranty: 2 Years


Description
GARRETT WALK-THROUGH DETECTOR SPECS COMPARISON

PD 6500i™
For maximum performance

Multi Zone™
Powerful and budget friendly
Detection Zones 33 zones (left, right and center); visual and audible alarms with a built-in dry contact alarm relay 20 independent zones; visual and audible alarms
Multi-Unit Synchronization Synchronization with wired AC power lines or with manual frequency selection for wireless operation Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation
Visual Displays LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images. LED zone indicator lights on both panels. Status lights are individually configurable as pace lights, ready/alarm lights or disabled.
Access Control Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad. Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head.
Passageway Interior Size Width 30″ (0.76 m)
Height 80″ (2.03 m)
Depth 23″ (0.58 m)
(32” versions are also available)

Width 30″ (0.76 m)
Height 80″ (2.03 m)
Depth 23″ (0.58 m)
(32” versions are also available)

Overall Exterior Size Width 35″ (0.90 m)
Height 87″ (2.21 m)
Depth 23″ (0.58 m) Width 35″ (0.90 m)
Height 87″ (2.21 m)
Depth 23″ (0.58 m)
Shipping Size Width 35.5″ (0.90 m)
Height 91.5″ (2.32 m)
Depth 6.25″ (.16 m) Width 35.5″ (.90 m)
Height 91.5″ (2.32 m)
Depth 6.25″ (.16 m)
Shipping Weight 165 lbs. (74 kg) 151 lbs. (68.5 kg)
Operating Temperatures -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing. -4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing.
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed. Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. 1-hour backup battery included for the MultiZone.
Regulatory Information Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending.
Weatherproofing Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection Meets IP 55, IEC 529 Standard for moisture, foreign matter protection
Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Optional Relay module connected via RS 485 cable provides NO/NC relay contact
(optional) Remote Control Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
(optional) Networking Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.
Warranty 24 months, limited parts and labor 24 months, limited parts and labor
Garrett Walk-Through Detector Safety
Garrett walk-through metal detectors meet U.S. and international regulatory requirements for electromagnetic safety. Extensive research has found no information that would indicate Garrett products have adverse effects on pregnancy, medical devices (such as pacemakers) or magnetic recording media. However, directives by physicians and medical device manufacturers regarding metal detectors should be followed.
