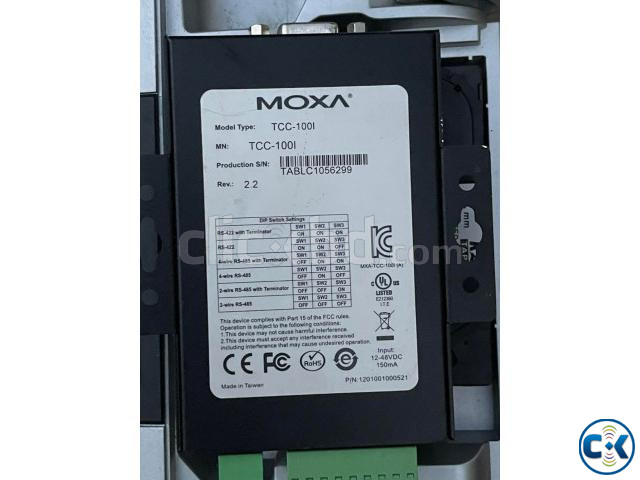

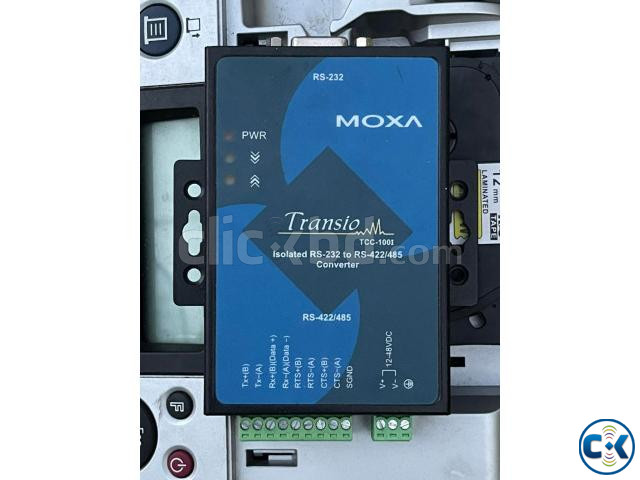

Moxa TCC-100i Industrial RS-232 to RS-422/485 Converter.

Moxa TCC-100i Industrial RS-232 to RS-422/485 Converter.

Moxa Industrial RS-232 to RS-422/485 Converter with 2 KV Optical Isolation, 12-48 VDC Powered, DIN-Rail or Wall-Mount, -20 to +60°C.

The TCC-100I RS-232 to RS-422/485 converter increases networking capability by extending the RS-232 transmission distance. The converter has a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, external terminal block for power, and optical isolation. The TCC-100I is an ideal solution for converting RS-232 signals to RS-422/485 in critical industrial environments.

Features &Benefits

• RS-232 to RS-422 conversion with RTS/CTS support
• RS-232 to 2-wire or 4-wire RS-485 conversion
• 2 KV isolation protection
• Wall and DIN-rail mounting
• Plug-in terminal block for easy RS-422/485 wiring
• LED indicators for power, Tx, Rx
• -20 to 60°C operating temperature.
