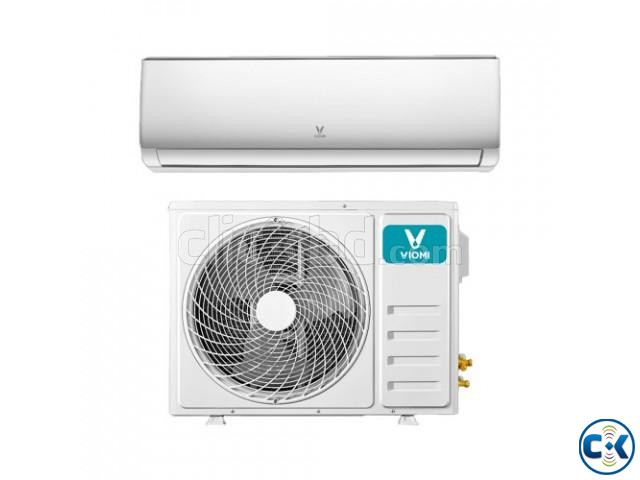

Xiaomi Viomi A1 1 Ton KF-31W/EYD3B-AAA Smart Air Conditioner

Warranty: 5 Years compressor, 1 year spare parts & service warranty

• Type: Cooling only
• Control type: Remote
• Power supply: Ph-V-Hz 1Ph-220-240V~50Hz
• Voltage Range: 198~264V
• Capacity: 12000Btu/h
• Power Capacity: 3517W
• Rated power Input: 1050W
• Rated current: 4.9A
• EER: 3.35W
• Max Power Input: 1365W
• Max current: 6.3A
• Moisture removal: Liters/h 1.3
• Indoor noise level: dB(A) 39
• Outdoor noise level: dB(A) 54
• CompressorType: Rotary
• RECHI Highly
• Capacity: 2720 ± 5 %
• Input: 1115 ± 5 %
• Rated current: (RLA) A5.2
• Locked rotor: Amp(LRA) A
• Capacitor: uF35
• Refrigerant oil/oil charge: ml” NMOC Zegles RB68EP or equivalent
• 270 ㏄±10 ㏄ “” HAF68D1 or equivalent
• 480±10 ml(Initial) “

Expansion device Capillary

• Indoor fan model Output: W ” 13(WELLING)、14(Broad-ocean), 13(Kaibang), 13(LT), 13(Tongde) ” 25(WELLING), 25(Broad-ocean)
• Capacitor uF1.5
• Speed: (Hi/Mi/Lo) Cooling r/min 1270/1170/1050/900/850
• Speed: (Hi/Mi/Lo) Heating r/min
• Dry r/min: 900
• Sleep r/min: 900
• Indoor coil a.Number of rows2
• Tube pitch(a)x row pitch(b) mm 21×12.7
• Fin spacing mm1.5 1.4
• Tube outside dia.and type mm Φ7,innergroove
• Number of circuits 1 in 2 out
• Indoor air flow (Hi/Mi/Lo)m3/h510
• Capacitor: uF2.5
• Speed: r/min860
• Outdoor coil a.Number of rows1
• Tube pitch(a)x row pitch(b) mm 20×11.6
• Fin spacing mm1.2
• Tube outside dia.and type mm Φ5,innergroove tube
• Number of circuits 2 in 1 out
• Indoor unit Dimension (W*D*H)mm: 777×250×201
• Packing (W*D*H)mm: 850×320×275
• Net/Gross weight Kg 8/11
• Outdoor unit Dimension (W*D*H)mm: 754×300×552v
• Packing (W*D*H) mm 798×356×575(with pipe)
• Net/Gross weight Kg 25/29(with pipe)
• Refrigerant piping Liquid side/ Gas side mm(inch) φ6(1/4″)/φ9.52(3/8″)
• refrigerant pipe length: m15
• difference in level: m5
• PressureHigh(DP)MPa4.5
• Low(SP)MPa1.9
• Refrigerant R410A
• Ambient temperature ℃ 18~43
• Suitable area m2 15~23
• Connecting Wiring Size x Core number 3×1.0mm2
• Power supply cord 1.0mm2 H05VV-F
• Qty 40’HQ 275(with pipe)
