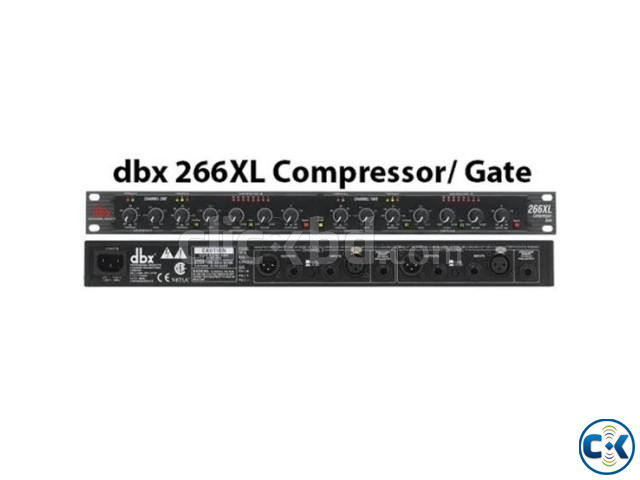

dbx266xl Compressor gate

Input Connectors 1/4" TRS and XLR, Floating Balanced; XLR: Pin 2 hot Phone: Tip Hot HI
Input Impedance 40kΩ balanced/unbalanced
Max Input +22dBu
CMRR >40dB (Any Frequency)
Sidechain 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
Sidechain Impedance >10kΩ
Sidechain Output Impedance ≤2kΩ
Sidechain Max Input Level +21dBu
Output Connectors 1/4" TRS phone and XLR floating balanced, XLR: Pin 2 and Tip Hi
Output Impedance 200Ω balanced, 100Ω unbalanced
Max Output +21dBu into 600Ω
Frequency Response Flat: 20Hz-20kHz, +0, -0.5dB
Noise
