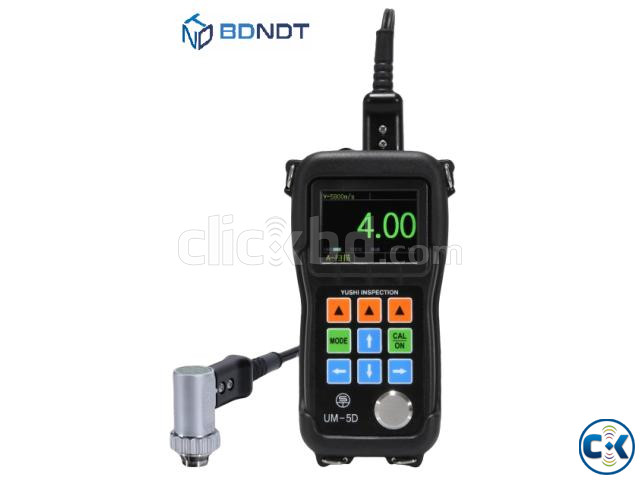

Thru-Coating Digital Ultrasonic Thickness Gauge in BD

Specifications of UM-5D Ultrasonic Thickness Gauge

Display Type: 2.4'' color OLED, 320×240 pixels, contrast 10,000:1
Operating Principle: Pulse echo with dual elemet transducers
Measuring Range: 0.50mm to 508mm(0.02'' to 20.00''), depending on material, probe and surface condition
Measuring Resolution: Selectable 0.01mm, 0.1mm(selectable 0.001'', 0.01'')
Units: Inch or Millimeter
Rectify Mode: RF+, RF-, HALF+, HALF-, FULL
Display Mode: Normal, Minimum/Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction: Automatic
Update Rate: Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range : 500 to 9999m/s(0.0197 to 0.3939 in/μs)
Languages: English, French, German, etc.
Alarm Settings: Minimum and Maximum alarms. Range of 0.25mm to 508 mm(0.010'' to 20.00''). Dynamic waveform color change on alarm
Power Requirements: 2 AA size batteries
Operating Time: Approximately 40 hours
Instrument Shut-off: Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature: -10℃ to +50℃(+10°F to +12°F )
Size: 153mm × 76mm × 37mm (H × W × D)
Weight: 280g including batteries
