ZTE Outdoor Router MC7010 Sub6+4G LTE 5G NR NSA+SA Qualcomm

ZTE Outdoor Router MC7010 Sub6+4G LTE 5G NR NSA+SA Qualcomm 5G SDX55M Platform N1/n3/n7/n8/n20/n28/n38/n41/n77/n78/79.

Description
Outdoor Router MC7010 Sub6+4G LTE 5G NR NSA+SA Qualcomm 5G SDX55M Platform n1/n3/n7/n8/n20/n28/n38/n41/n77/n78/79
MC7010 is a 5G outdoor FWA that can provide both high speed data service and voice service to residential, business and enterprise users. MC7010 supports data downlink speeds up to 3.8Gbps and 542Mbps for uplink. With built-in high gain antenna, MC7010 provides wide service coverage and high data throughput.
MC7010 5G Outdoor CPE Specifications:
* Product type: 5G Outdoor Router
* Support NSA 5G Sub6 + LTE Networks
* Chipset: Qualcomm 5G SDX55M platform
* CPU (cores): Cortex A7 up to 1.4GHz* 5G download speed up to 3.8Gbps, upload speed to 331Mbps5G/4G/UMTS multi-modeNSA/SA5G sub6G Band:N1/28/41/78/794G FDD:B1/3/5/8/28;TDD:B34/39/40/41
* MIMO- mmWave: 2 x 2 MIMO- Sub6G DL: 4 x 4 MIMO- LTE 4 x 4 MIMO on 5CA(4G only)
* Administration console: Full access from a web browser
* ODU design resistant to weather conditions
* ideal for home, office and poor coverage areas
* 5G/LTE antenna with strong cellular signal reception
* Others:
- Firewall: Yes
- SMS: Yes
- Parental Control: Yes
- FOTA Updates: Yes
- 5G signal diagnostics: Yes

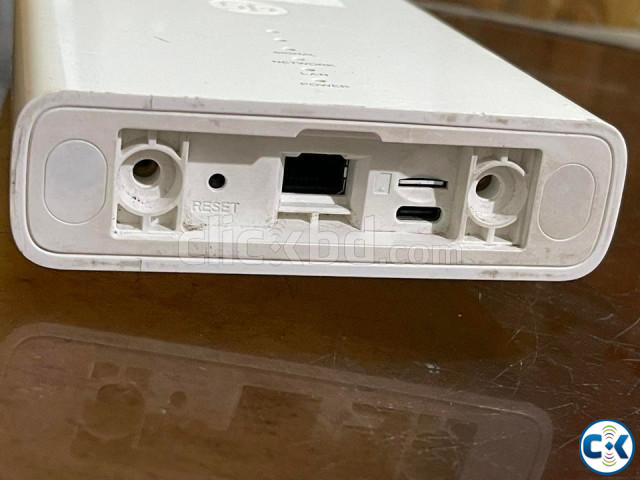

* Interfaces: 1 x 2.5Gigabit RJ45(Standard POE)
* Dimensions: 188.0 x 106.6 x 29mm(MC7010 ODU)
5G outdoor CPE-MC7010 product paramenters
5G outdoor CPE MC7010
Application scenario

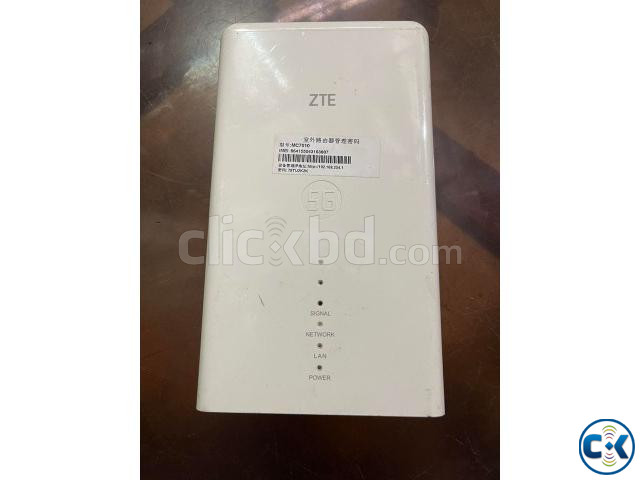

Outdoor CPE MC7010 six views
High Performance experience Enjoy 5G high speed
Qualcomm Snapdragon M X55 platform supports SA+ NSA network environment, supports sub6 and mmW dual-mode, enjoys 5G extremely fast Internet experience, and the theoretical downlink peak rate is 5.36Gbps, and supports global mainstream frequency bands.
High gain smart antenna technology
Using directional + omnidirectional hybrid antenna technology to achieve 360° coverage, the edge rate of the base station is increased by 20%. (*Data comes from ZTE Lab)
5G outdoor CPE-MC70.
