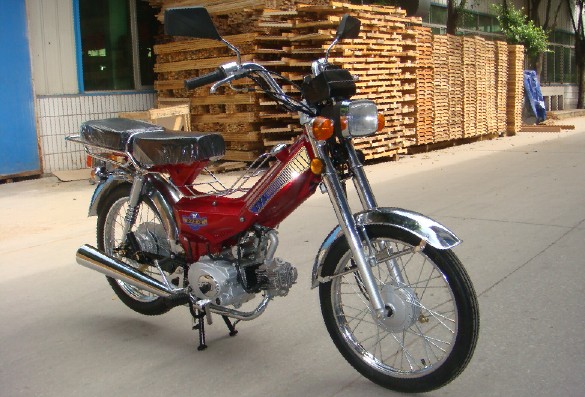

Red 48Q Motorbike

CHONGQING SHENGWEI ENTERPRISE CO., LIMITED is an export-oriented enterprise from Chongqing China.The company is devoted to be the one of the best suppliers to offer the customers high quality price ratio products from China.The main products of Shengwei now includes motorcycles, all terrain vehicles, tricycles, general engines, agricultural machines, parts & accessories and other new products owning great market potential. Please visit www.cqshengwei.com for more.

ENGINE
Engine Type:, Air cooled, 4-stroke, 1-cylinder
Bore × Stroke: (mm) 47.0×41.4
Compression Ratio: 8.8:1
Standard Power (kw/r/min): 3.42kw/7500rpm
Maximum Torque (n.m/r/min): 35.6/6000r/min
Carburetion: PZ16
Ignition Type: CDI
Start Mode: Electric/Kick
Transmission: N-1-2-3-4
Drive Train: Chain
Idle Speed(r/min): 1500±150

CHASSIS
Brakes/Front: Drum
Brakes/Rear: Drum
Front Tire Size: 2.25-17-4PR, 200Kpa
Rear Tire Size: 2.50-17-6PR, 225Kpa
Front Wheel Type: Spokes
Rear Wheel Type: Spokes
DIMENSIONS
Dim (L×W×H) (mm): 1800×775×1040
Seat Height (mm): 790
Wheel Base (mm): 1200
Ground Clearance (mm): 120
Fuel Capacity: 2.5L
Fuel Consumption/100KM: ≤1.5L
Loading Quantity (SKD): UNITS 40'HQ/192
Net Weight (kg): 80
Gross Weight (kg): 95
Packing Size (mm): 1480×377×850

OTHERS
Lighting: 12V35W/35W*1; 12V5W/21W*1(rear)
Climb Ability: ≥18°
Brake Distance (30 km/hr): ≤7.00m
Max Speed (km/h): ≥60
