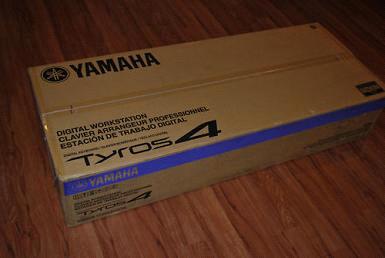

Yamaha TYROS4 TYROS 4 Keyboard

Specifications Tyros4

Color/Finish Silver
Size/Weight
Width 1,140mm
Height 143mm
Depth 450mm
Weight 14.5 kg
Control Interface
Number of Keys 61
Keyboard Type FSX
After Touch yes
Touch Response yes
Pitch Bend yes
Modulation yes
Multi Pads yes x4
Sliders 9 (incl. one assignable)
Art. Switches 2
Display Type Full Dot TFT LCD
Display Size 640 x 480 dots TFT 7.5inch
Display Color Color
Score Display yes
Lyrics Display yes
Text Viewer Function yes
OTS Viewer Yes
Voice Information Yes
Wallpaper Customization Main/Lyrics
Display Language English, German, French, Spanish, Italian
Panel Language English
Voices
Tone Generating Technology AWM Stereo Sampling
Number of Polyphony 128
Preset - Number of Voices 993 + 30 Organ Flutes + 480 XG + 256 GM2 + 44 Drum/SFX kits (+ GS Voices for GS Song playback)
Preset - Featured Voices
Articulation 2 (AEM Technology)
15 S.Articulation2 (additional 15 for styles)
[STRINGS] JazzViolin/ CelticViolin
[TRUMPET] JazzTumpet/ClassicTrumpet
[SAX] PopSoprano/ BalladSoprano/JazzSax/BreathySax
[FLUTE/CLARINET] Clarinet/ BalladClarinet/ Romanceclarinet/ Irishpipeair/ Irishpipedance
[ACCORDION] Harmonica/ Bluesharp
Super Articulation Technology
164
MegaVoice 43
Live! 101
Cool! 71
Sweet 30
Organ Flutes 30 Presets
Drums 44 (inc SFX kits)
Optional Wave Capacity 6MB (Pre-installed) / MAX 1,024MB (Optional FL1024 Flash memory)
Sampling Custom Voice
Voice Edit Voice Editor (Normal voice and Drum kit)
Sound Creator / Voice Set yes
Compatibility - XG yes
Compatibility - XF yes
Compatibility - GS yes
Compatibility - GM yes
Compatibility - GM2 yes
Effects
Reverb 44
Chorus 106
DSP DSP 1-7 = 285
DSP8-9 = 285 for styles
Master Compressor 5 Preset + 5 User
Master EQ 5 Bands : 5 Preset + 2 User
Part EQ 2 Bands: 29 Parts (R1, R2, R3, Left, MultiPad, Style x 8, Song x 16)
Others Mic effects: Noise Gate x 1, Compressor x 1, 3Band EQ x 1
Functions - Dual Voice layer (RIGHT 1-3)
Functions - Split Seperate split points for Chord and Voice (LEFT)
Panel Sustain yes
Poly/Mono yes
Vocal Harmony (VH2)
Vocal Harmony - 44 + 10 synth vocoder
60 user slots
23 Vocal effects
Accompaniment Styles
Number of Preset Styles 500 SFF GE format
Ram Capacity Per Style
approx. 120Kb
Fingering Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Style Control INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
User Styles yes
Style Creator yes
Music Finder yes
One Touch Setting (OTS) 4 for each style
Songs
Number of Preset Songs 5
Recording - Number of Songs Unlimited (depending on the storage media's capacity)
Recording - Number of Channels 16
Recording - Song Data Capacity approx. 300KB
Recording Function Quick Recording, Multi Recording, Step Recording, Song Editing
Compatible Data Format - Playback SMF (Format 0 & 1), ESEQ, XF, Style File, XG, GM2/GS
Compatible Data Format - Recording SMF (Format 0)
Hard Disk Recording yes (Play: 2 stereo tracks, Rec: 1 stereo track) (.wav format)
Audio Playback .MP3 and .WAV
Functions
Registration Memory - Number of Buttons 8 x unlimited banks (depending on the storage media's capacity)
Registration Memory - Control Bank +/-, Regist Sequence, Freeze
Guide Follow Lights, Any Key, Karao-Key, Vocal CueTIME
Performance Assistant Technology (PAT) yes
Demonstration yes
Metronome yes
Tempo Range 5 - 500, Tap Tempo
Transpose yes
Tuning yes
Octave Button yes
Scale Type 9 presets
Direct Access yes
Storage and Connectivity
Flash Memory (Internal) 6Mb
HDD 250GB 2.5 inch IDE (Included, Internal)
External Drives Optional USB Flash Memory, USB Hard Disk Drive, etc. (via USB to DEVICE)
Optional Memory FL1024 Flash Module only
Headphones x1
Microphone Mic./Line in balanced TRS connection
MIDI MIDI A (IN/OUT), MIDI B (IN/OUT)
AUX IN L/L+R, R(LEVEL FIXED) or LOOP RETURN L/L+R, R
AUX OUT L/L+R, R(LEVEL FIXED) or LOOP SEND L/L+R, R (Selectable)
AUX Pedal (optional) Switch or Volume x 3
LINE OUT MAIN OUT (L/L+R, R), Sub Output 1, 2
VIDEO OUT RGB Out, NTSC / PAL Composite
Loop Return yes
USB TO DEVICE x 2 (USB 2.0)
USB TO HOST x 1 (USB 2.0)
LAN Port yes
External Speaker To Satellite Speaker (L/R), To Sub Woofer (L/R)
Amplifiers and Speakers
Amplifiers Optional Speaker (TRS-MS04)
Speakers Optional Speaker (TRS-MS04)
Power Supply
Power Supply AC Inlet
Bundled Software
CD-ROM yes
Accessories
Music Rest yes
Internet Direct Connection (IDC)
Internet Direct Connection (IDC) yes
