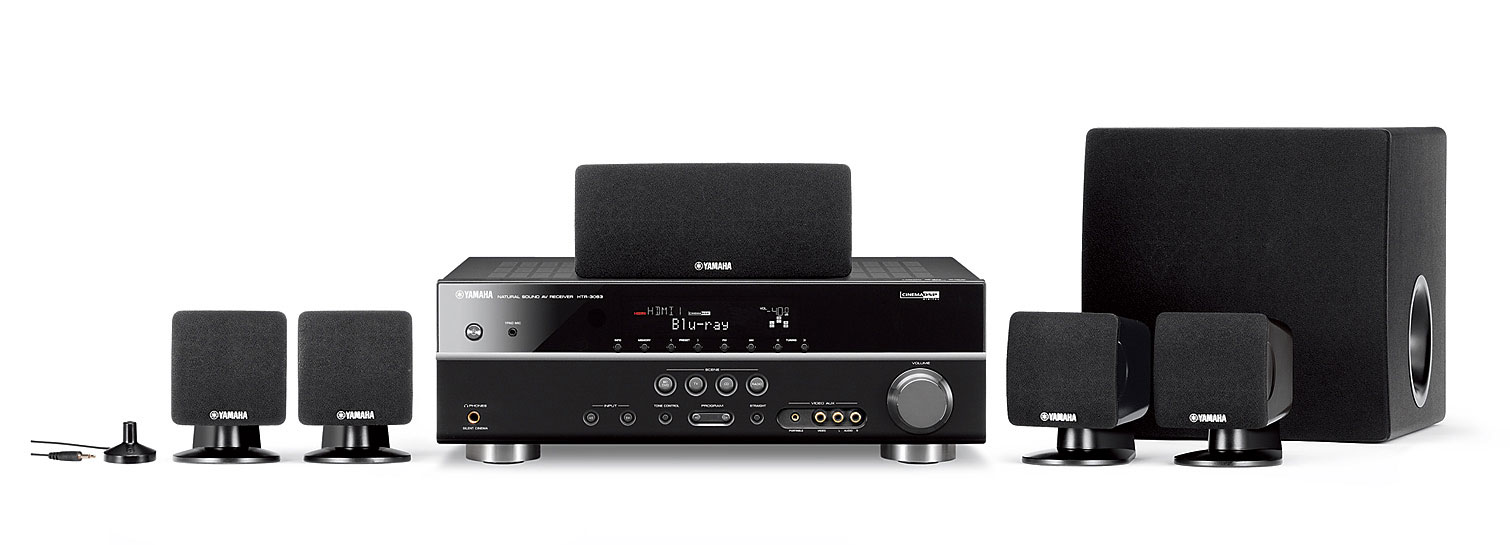

YAMAHA home theatre with 3D & HD compatibility

3D-compatible Home Theatre Package featuring 1080p-compatible HDMI repeater (4 in/1 out), YPAO, SCENE and upgraded CINEMA DSP. Affordable yet sophisticated, it gives you the assurance of superb HD audio and video quality.
High Sound Quality

• 5.1-channel total 600W powerful sound (100W x 5 + 100W powered subwoofer)
• 192 kHz/24-bit Burr-Brown DACs for all channels
• Natural tonal sound speakers: Compact design for flexible placement
• 16cm 100W Advanced YST subwoofer with Linear Damping
High Picture Quality

• 1080p-compatible HDMI repeater (4 in/1 out)
• Supports Deep Color, x.v.Color, 24Hz Refresh Rate and Auto Lip Sync
Surround Realism

• Upgraded CINEMA DSP with 17 DSP programs
• Compressed Music Enhancer
• Adaptive DRC (Dynamic Range Control) and Adaptive DSP level
Advanced Features

• HDMI (V.1.4 with 3D)
• HD Audio compatibility (linear PCM via HDMI transmission)
• SCENE buttons with direct power on — quick and simple to use
• YPAO sound optimization for automatic speaker setup
• Front panel mini jack input for connecting portable audio player
• Audio input assign capability for HDMI and component video input
• 40-station preset tuning
• Auto power down function with variable time setting
• Includes mini stands for front and surround speakers
Specifications:

*Channel 5.1-channel
*Total System Power 600 W
*Receiver Minimum RMS Output Power 100 W x 5 (6 ohms, 1 kHz, 0.9% THD)
*Maximum Effective Output Power 135 W x 5 (6 ohms, 1 kHz, 10% THD)
*Dynamic Power/Channel (8/6/4/2 ohms) 105/130/150 W (6/4/2 ohms)

#SCENE Yes
#Front Panel Mini Jack Input Yes
#YPAO Sound Optimiｚation Yes
#Compressed Music Enhancer Yes
#Adaptive DRC (Dynamic Range Control) Yes
#HDMI Input / Output 4 / 1
#Audio Digital Input (Optical / Coaxial) 4 (2 / 2)
#192kHz/24-Bit DACs Yes (All channels)
#Surround Programs 17
#HDMI Interface V.1.4a with 3D
#Tuner FM/AM
#Total Harmonic Distortion 0.06% (1 kHz, 50 W/8 ohms)
#Signal-to-Noise Ratio (250 mV) 98 dB (250 mV)
#Standby Power Consumption 0.5 W
#Dimensions (W x H x D) 435 x 151 x 315 mm
#Weight 7.5 kg
#Speaker System System Frequency Response 30 Hz-40 kHz
#Impedance 6 ohms (without subwoofer)
#Front Speaker Type Acoustic suspension
#Drivers 6.5cm cone full-range driver
#Input Power (Nominal / Max) 30 W / 80 W
#Sensitivity 81 dB/2.83 V/1 m
#Dimensions (W x H x D) 90 x 120 x 123 mm (with stand); 90 x 90 x 109 mm (without stand)
#Weight 0.51 kg/unit (with stand)

Center Speaker Type 2-way acoustic suspension
Drivers Dual 6.5cm cone woofers and 2.5cm balanced-dome tweeter
Input Power (Nominal / Max) 50 W / 100 W
Sensitivity 84 dB/2.83 V/1 m
Dimensions (W x H x D) 220 x 90 x 109 mm
Weight 1 kg
Surround Speaker Type Acoustic suspension
Drivers 6.5cm cone full-range driver
Input Power (Nominal / Max) 30 W / 80 W
Sensitivity 81 dB/2.83 V/1 m
Dimensions (W x H x D) 90 x 120 x 123 mm (with stand); 90 x 90 x 109 mm (without stand)
Weight 0.51 kg/unit (with stand)
Subwoofer Type Advanced YST with Linear Port
Output Power 100 W
Driver 16cm cone
Dimensions (W x H x D) 262 x 264 x 316 mm
Weight 6.9 kg

The product is superb for the people who listen high quality performance digital audio. My entire products have one year full warranty. For checking the originality of my products please ask for the product number and check.Please call me if you have further question.
