samson cr77 guitar wireless

The SAMSON CONCERT 77 GUITAR CHANNEL 2 UHF Wireless System. Affordable, yet professional UHF system for wireless transmission of guitars and other instruments in performance applications.

The SAMSON CONCERT 77 GUITAR CHANNEL 2 is a UHF wireless solution ideal for any professional application. UHF means Ultra High Frequency, which translates to crystal clear operation with no interference, traditionally available on only the most expensive systems. Now UHF performance and reliability is affordable thanks to Concert77. This system includes the CR77 Receiver and the CT7 Body-Pack Transmitter with 1/4 inch jack Instrument Cable, designed for wireless transmission of guitars and other instruments in performance applications. The CT7 belt-pack transmitter can be configured as a lavalier, headset, wind instrument and guitar system thanks to the popular locking P3 input connection. The CT7 also features a three-segment battery indicator, separate power and audio on/off switches, adjustable AF level (audio gain), and 12-hours of battery life on a single 9-volt battery. The CR77 true-diversity half-rack UHF receiver is the core of the Concert77 system. The synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The CR77 features a front panel display with large multi-segment Audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. The rear panel features balanced XLR and un-balanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can be rack mounted together in a single space rack adapter available as an added accessory.

The main features of the SAMSON CONCERT 77 GUITAR CHANNEL 2 include:

Affordable, yet professional UHF system for wireless transmission of guitars and other instruments in performance applications
Transmitter and receiver function on a single frequency 863.625 MHz / Channel 2
True Diversity UHF Wireless System with PLL Frequency Control - twin antennas and receiver circuits that compete for the strongest possible reception
Multi-segment Audio level, RF level and A/B Antenna Operation LED meters
Squelch control eliminates carrier signal noise and RF interference
Tuned molded antennas for accurate reception
XLR and unbalanced 1/4 inch jack outputs with mic/line level output switch

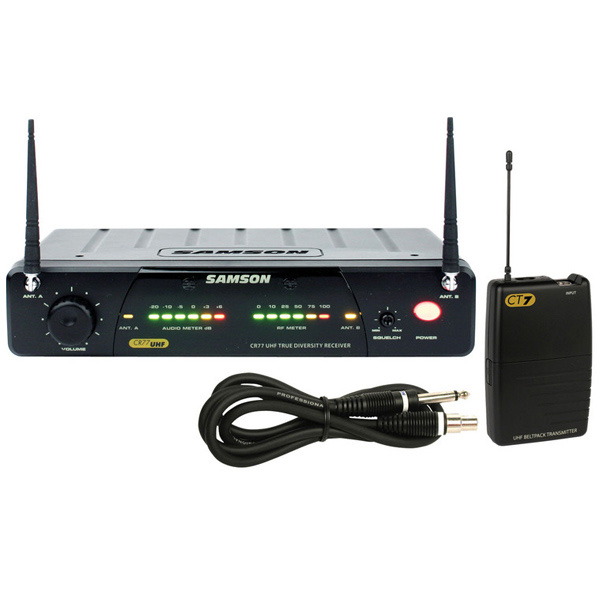

System includes the CR77 Receiver and the CT7 Body-Pack Transmitter with 1/4 inch jack Instrument Cable
Expandable - The CT7 Transmitter is compatible with all Samson lavalier, headsets and instrument cables with a P3 connection
