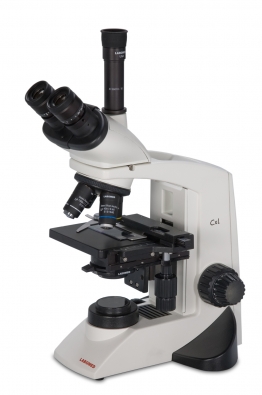

TRINOCULAR EDUCATIONAL MICROSCOPE WITH 4 OBJECTIVES, HALOGEN

Model: CXL Brand: Labomed, Origin: Labo America Inc. USA
Optical System: Antifungal Finite
Stand: Single mold sturdy stand with anti-rust materials
Viewing Bodies: Rotating Tri-nocular tube, 45° inclined, 360° rotatable, when locked-in, Interpupillary distance 54-74mm
Eyepieces: Wide Field focusable paired eyepiece WF
10x/18mm, antifungal coating
Nosepiece: Quadruple (Ball bearing type) with rubber grip
Objectives: LP series DIN Semi-Plan Achromatic, antifungal
4x/NA 0.10/WD 16.5mm,
10x/NA 0.25/WD 6.44mm,
40x (spring)/NA 0.65/WD 0.5mm
100x (spring loaded, oil)/NA 1.25/WD 0.14mm
Mechanical Stage: Rectangular stage plate size 135 x
124mm, X/Y travel range 76 x 50mm.
Condenser: Sub-stage Abbe condenser NA 1.25 with
aspheric lens. Iris diaphragm with snap-in blue filter and
slider path. Rack and pinion movements on metal guides.
Focusing: Feather touch tension adjustment free co-axial
coarse and fine focusing 0.3mm per rotation for ultra smooth movement
Illumination: Halogen 6V-20W illumination with variable illumination control.
Electrical: Universal input 100V-240V AC, 50/60 Hz

Packed in styrofoam box, with operation manual, allen
wrench, Nylon dust cover, cleaning cloth, power cord, spare
bulb, spare fuse and 10ml immersion oil TYPE A.
CE certified
