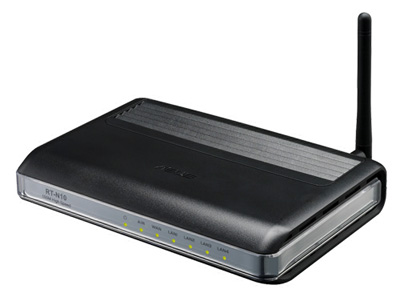

ASUS Wireless Router (RT-N10)

Network Standard: IEEE802.11b, IEEE802.11g, IEEE802.11n-compatible IEEE802.11d, IEEE802.3, 802.3u, 802.11i, 802.11e, IPv4
Features: EZQoS(Easy Quality of service)Allow multiple network activities (FTP, Game, P2P…) to work smoothly at the same time
Smart Wizard browser-based administration
Remote management
Save/restore configuration files
Upgrades via web browser
Firmware restoration
Device discovery
DHCP server, WAN DHCP client
Interface:
WAN: 1 x RJ45 for 10/100 BaseT;
LAN: 4 x RJ45 for 10/100 BaseT; Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function (MDI-X)
Restore button: Push for 5 seconds to restore factory setting
EZSetup button: Automatically SSID and WEP or WPA configuration
Antenna:
1 X external detachable dipole antenna
1 X internal PCB antenna
Operating Frequency: 2.4GHz
Operation Channel:
11 for N.America, 13 for EU, 14 for Japan
Data Rate:
802.11n Draft 2.0 up to 150Mbps*
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
Output Power:
n mode:15~17dBm
g mode:15~17dBm
b mode: 16~18dBm
LED Indicator:
Power x 1, AIR x 1, WAN x 1, LAN x 4
Utilities:
Device Discovery: Discover router in network and help user to invoke Web Configuration page
EZSetup: Help you to setup wireless and Internet connection easily
Firmware Restoration: Restore firmware while system enters rescue mode

Power Adapter:
AC input:
100V~120V(50~60Hz) for US type
220V~230V(50Hz) for EU and UK type

DC output:
9V with max. 1A current or 5V with max. 1.2A current
Physical Specifications:
Dimensions: 165 X 115 X 30(L x W x H)mm
Weight: 260g

Package Contents:
RT-N10 * 1
RJ45 Cable * 1
Support CD * 1
Antenna * 1
Warranty Card * 1
Power Supply * 1
