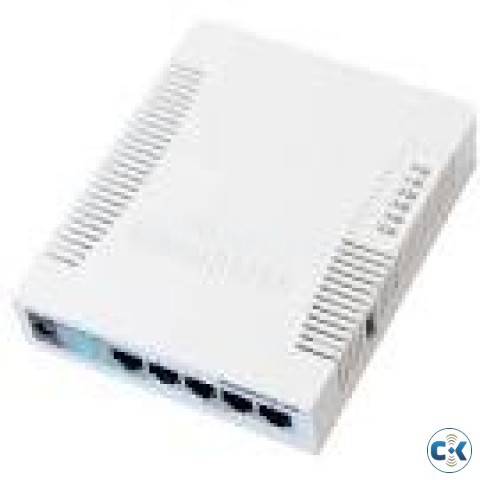

Features: RB751U-2HnD (USB, 2GHz, 802.11n, dual chain) CPU: Atheros AR7241 400MHz CPU Memory: 32MB DDR SDRAM onboard memory Data storage: 64MB onboard NAND storage chip Ethernet : Five independent 10/100 Ethernet ports LEDs: Power, NAND activity, 5 Ethernet LEDs, wireless activity LED Power options: PoE: 8-30V DC on Ether1 (Non 802.3af). Jack: 8-30V DC Dimensions: 113x138x29mm. Weight without packaging and cables: 230g Power consumption: Up to 10W Operating Temp: -20C .. +50C Operating System: MikroTik RouterOS, Level4 license Package contains: RouterBOARD in a plastic case, power adapter Antennas: 2x2 MIMO PIF antennas, max gain 2.5dBi; external MMCX option RX sensitivity: 802.11g: -96dBm @ 6Mbit/s to -81dBm @ 54Mbit/s 802.11n: –96 dBm @ MCS0 to –78 dBm @ MCS7 TX power: 802.11g: 30dBm @ 6Mbps to 27dBm @ 54 Mbps 802.11n: 30dBm @ MCS0 to 26dBm @ MCS7 Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
