Network Crimp Plugs Cat5 8P8C Lan Connector Network

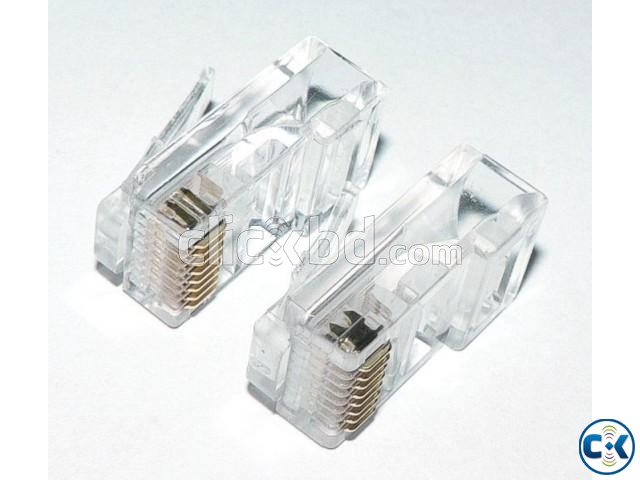

RJ45 Network Crimp Plugs Cat5 8P8C Lan Connector Network

This high quality and low cost RJ45 Connector is used for Cat5 cable. Makes a solid network connection. If you make your own patch cable, or just need to fix a cable end, this connector will provide what you need.

Specifications

1. UTP Cat5 / Cat5e connector
2. Contacts are nickel plated
3. Shell is PC material
4. Accept 2-26awg solid with a insulation 0.5mm
5. Designed For: Voice/Data applications
6. Housing: Polycarbonate and metal
7. Color: Clear / transparent

Technical Specificate:

IDC Contact: 50 micron Gold coated,0.5mm Wire Dia. IDC connection =200 times
Contact Resistance: =2.5 M ohm
Insulation Resistance: =1000 M ohm
Dielectric Strength: DC1000V or AC700V in 1 min.,No Arc & Spark-over.
Life Span: Plug/Pull =750 times

Feature:
1)All connector available.
RJ45 Connector male UTP, RJ11 / RJ12 / RJ45 / RJ48 all specifications available

2)Patent connector.
Patented Cat.5e/Cat.6 UTP / FTP shield/unshield connector

3)Best quality imported material.
Imported polycarbonate material with good transparency and flexibility

3)Fully compatible with different Jack
Designed according to FCC standard

4)UL certified RJ45 connecor UTP
94-V0 94-V2 plugs are UL certificated

Name of the pin function
1. TX_D1 + to send data (+)
2. TX_D1 to send data (-) -
3. RX_D2 + (receive data +)
4. BI_D3 + two-way data (+)
5. BI_D3 two-way data (-) -
6. RX_D2 - (receive data -)
7. BI_D4 + two-way data (+)
8. BI_D4- two-way data (-)

Minimum Order Quantity: 300 Pieces
Price: 2.50 tk/Pieces (wholesale)

----------------------------------------------
