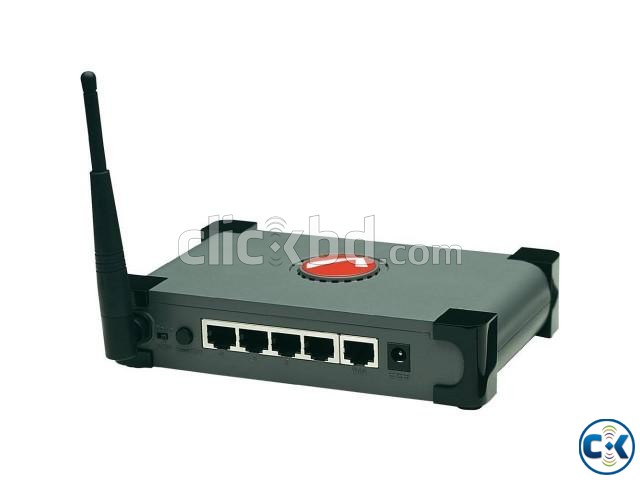

INTELLINET Wireless 150N 4-Port Router

Standards
IEEE 802.1d (Spanning Tree Protocol)
IEEE 802.11b (11 Mbps Wireless LAN)
IEEE 802.11g (54 Mbps Wireless LAN)
IEEE 802.11n (150 Mbps Wireless LAN)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)

General
LAN ports: 4 RJ45 10/100 Mbps data ports
LAN ports with Auto MDI/MDI-X
WAN port: 10/100 Mbps RJ45 connector
LAN to WAN throughput: 93 Mbps
Flash: 2 MB
Memory: 16 MB SDRAM
Certifications: FCC Class B, CE, RoHS

Router
Supported WAN connection types:
- Dynamic IP (DHCP for cable service)
- Static IP
- PPPoE (for DSL)
- PPTP
Protocols:
- CSMA/CA
- CSMA/CD
- TCP/IP
- UDP
- ICMP
- PPPoE
- NTP
- NAT (network address translation)
- DHCP
- DNS
NAT:
- Virtual server
- Port forwarding
- Special applications (port trigger)
Firewall:
- Access control-based on MAC address
- URL filter
- DMZ (demilitarized zone)
Supports UPNP (Universal Plug and Play)
Supports DHCP (client/server)
Supports PPPoE (DSL), DHCP (cable) and static IP
Supports VPN PPTP, L2TP and IPsec passthrough

Wireless
Wireless frequency range: 2.400 – 2.483 GHz
Modulation technologies:
- 802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK
- 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
- 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
Channels:
- USA & Canada: 11 channels
- Europe: 13 channels
- Japan: 14 channels
Data rates:
- IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
- IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps)
- IEEE 802.11n (MCS0-7: up to 150Mbps)
Output power:
- OFDM: 12 dBm +/- 1.5 dBm (150 Mbps)
- OFDM: 12 dBm +/- 1.5 dBm (54 Mbps)
- CCK: 16 dBm +/- 1.5 dBm (11 Mbps)
Receiver sensitivity:
- 11n (150 Mbps) MCS7: 20 MHz: -64 dBm; 40MHz: -61 dBm
- 11g (54 Mbps) OFDM: -65 dBm
- 11b (11 Mbps) CCK: -76 dBm
Maximum coverage distance: 100 m / 328 ft. (indoors), 300 m / 980 ft. (outdoors)
Wireless security:
- WEP encryption (64/128 bit)
- WPA TKIP
- WPA2 AES
- WPA2 mixed
- WPA RADIUS
- Client access control through media access control (MAC) filter
Fixed dipole antenna with 2 dBi gain

LEDs
Power
WLAN Link/Act
LAN 1-4 Link/Act

Environmental
Dimensions: 157 (W) x 127 (L) x 30 (H) mm (6.2 x 5.0 x 1.2 in.)
Weight: 0.8 kg (1.7 lbs.)
Operating temperature: 0 – 40°C (32 – 104°F)
Operating humidity: 10 – 90% RH, non-condensing
Storage temperature: -20 – 60°C (4 – 149°F)

Power
External power adapter: 5 V DC, 1.0 A
Power consumption: 2.3 Watts max.

Package Contents
Wireless 150N 4-Port Router
User manual
Power adapter
Ethernet Cat5 RJ45 cable: 1.0 m (3 ft.)

Warranty: 2 Years
