GEPON ONU 1PON SC Interface+1GE Auto-adaptive RJ45 port,

　　　1GE ONU Compatible with ZTE F401 GEPON ONU

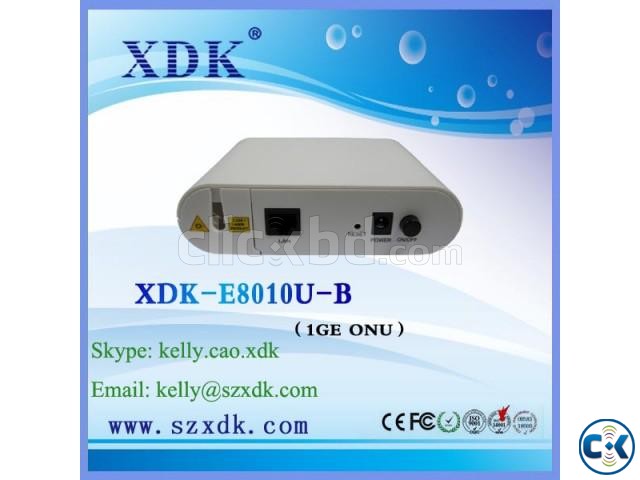

XDK-E8010U-B GEPON ONU type products fully comply with IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.

1. Port Features:
1* PON port (1.25G)

1* 10/100/1000M port

2. Product Features:
Conform to IEEE802.3ah standard.
Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services.
Support frame filtering and suppression.
Support standard 802.1Q Vlan function, support VLAN conversion.
Support 4094 VLANs (802.1Q).
Support Dynamic Bandwidth Allocation (DBA) function.
Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc.
Single supports up to 1 LLID.
Support IGMP Snooping.
Support Ethernet port ratelimit loop detection.
Support power failure alarm.
Support lightning protection for power supply and lightning protection for service port.

3. Physical Features:
Power supply: 12VDC
Power consumption: 6W
Temperature:
Working temperature:0~55°C
Storage temperature: -30~60°C
Relative humidity: 10~90% (non-condensing)

4. Shipping Way
(1) Shipping ways:UPS/TNT/DHL/EMS and so on( door to door express) or by sea
(2) Certification;CE,ROHS,FCC,ISO9001,ISO14000 etc
(3) Support OEM OEM service
(4) Warranty: one year for the equipment
